VZP Epoxy Acrylate Xchem Pro Glass Capsules

Description

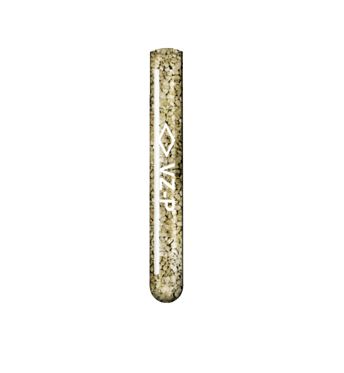

XChem Pro C601 Capsule VZ-P – Epoxy-Acrylate / HEC XChem Pro

The C601 VZ-P Capsule from HEC XChem Pro is a pre-packaged epoxy-acrylate resin system for reliable, high-load anchoring in concrete and solid masonry. Each capsule contains a two-component formulation that provides controlled mixing during anchor installation. Designed for both structural and seismic applications, the C601 system is AS 5216 compliant and suitable for demanding environments requiring long-term durability.

Applications

• High-strength anchoring of threaded rods and reinforcing bars in concrete
• Seismic C1 and fire-rated anchoring applications
• Ideal for industrial, civil, and structural construction projects
• Used with wide-square U-bolts or studs in pre-drilled holes

Features

• Styrene-free epoxy-acrylate formulation
• High bond strength and excellent performance in concrete
• Single capsule per hole simplifies installation and ensures correct dosage
• AS 5216 compliant, ETA certified, seismic C1 rated, and fire tested
• Suitable for potable water and LEED tested for low VOC
• Long shelf life and consistent curing performance

Specifications

Compliance & Ratings

• AS 5216 Compliant
• ETA Certified
• Seismic C1 Rated
• Fire Rated
• VOC/IAQ Grade – Potable Water Approved
• LEED Tested

Installation

1. Drill hole to the correct diameter and depth for the anchor size.
2. Clean the hole thoroughly (blow, brush, blow) to remove dust and debris.
3. Insert the capsule into the hole.
4. Using a rotary hammer drill, spin the threaded rod or rebar into the capsule until fully seated.
5. Allow the resin to cure fully before applying load.

Refer to the HEC XChem Pro technical data sheet for detailed curing times, load capacities, and installation parameters.
