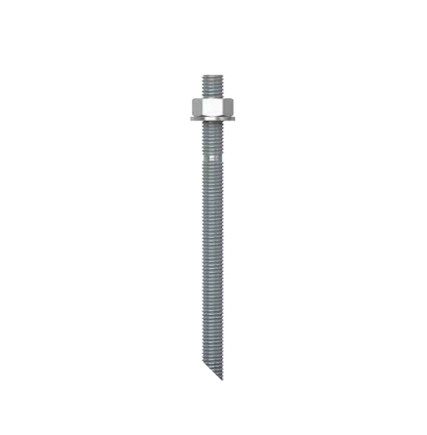

Chisel Point Chemical Stud Flat Top Anchor Class 5.8 Hot Dip Galvanised

From $16.50

Clear

Description

[Product Information]

Hobson® Chemical Anchor Studs are a single unit non expansion fasteners that is used in pre-drilled holes into a selected/specified resin. They comprise of a chisel or bevelled point stud available in flat cut or external hexagon type head, a nut and washer. Fixing of the stud is achieved by inserting a suitable curing resin into the hole using a glass chemical capsule or injection adhesive system. The stud is then inserted into the hole and rotated either by hammer drill (for glass capsule) or hand (for injection type) to allow for proper setting into the resin. The stud can be loaded once appropriate curing time has been achieved.

Applications
• Fixing to concrete or masonry substrates
• Holding down machinery
• Commonly used in applications that require non expansion type fasteners
• Used in applications that require closer edge distance and spacing

Features
• Good load capability
• Non expanding anchor
• Resistant to vibration
• Complete sealing of hole
• Can be installed close to edge
• Reduced spacing between anchors
• Excellent holding power in weak base materials





PartQFindDescriptionProductFinishSizeLen
MCS58GCM100130MCS106GAL CHEM STUD KIT:M10 X 130STUD CHEM ANCHOR KIT(FLAT TOP)HOT DIP GALVANISEDM10130
MCS58GCM120160MCS107GAL CHEM STUD KIT:M12 X 160STUD CHEM ANCHOR KIT(FLAT TOP)HOT DIP GALVANISEDM12160
MCS58GCM160190MCS108GAL CHEM STUD KIT:M16 X 190STUD CHEM ANCHOR KIT(FLAT TOP)HOT DIP GALVANISEDM16190
MCS58GCM200260MCS109GAL CHEM STUD KIT:M20 X 260STUD CHEM ANCHOR KIT(FLAT TOP)HOT DIP GALVANISEDM20260
MCS58GCM240300MCS110GAL CHEM STUD KIT:M24 X 300STUD CHEM ANCHOR KIT(FLAT TOP)HOT DIP GALVANISEDM24300



Additional Information

Diameter x Length:

M10 x 130mm, M12 x 160mm, M16 x 190mm, M20 x 260mm, M24 x 300mm
