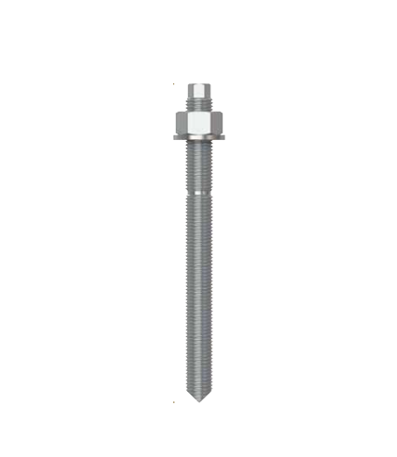

Chisel Point Chemical Stud External Hex Class 8.8 Hot Dip Galvanised

$19.80$81.40

Clear

Description

[Product Information]

Hobson® Chemical Anchor Studs are a single unit non expansion fasteners that is used in pre-drilled holes into a selected/specified resin. They comprise of a chisel or bevelled point stud available in flat cut or external hexagon type head, a nut and washer. Fixing of the stud is achieved by inserting a suitable curing resin into the hole using a glass chemical capsule or injection adhesive system. The stud is then inserted into the hole and rotated either by hammer drill (for glass capsule) or hand (for injection type) to allow for proper setting into the resin. The stud can be loaded once appropriate curing time has been achieved.

Applications
• Fixing to concrete or masonry substrates
• Holding down machinery
• Commonly used in applications that require non expansion type fasteners
• Used in applications that require closer edge distance and spacing

Features
• Good load capability
• Non expanding anchor
• Resistant to vibration
• Complete sealing of hole
• Can be installed close to edge
• Reduced spacing between anchors
• Excellent holding power in weak base materials





PartQFindDescriptionProductFinishSizeLen
MCA88GCM120160HMCA120GAL-HX 8.8 CHEM ANCH:M12 X 160STUD CHEM ANCHOR KIT (EXT HEX)HOT DIP GALVANISEDM12160
MCA88GCM160190HMCA121GAL-HX 8.8 CHEM ANCH:M16 X 190STUD CHEM ANCHOR KIT (EXT HEX)HOT DIP GALVANISEDM16190
MCA88GCM200260HMCA122GAL-HX 8.8 CHEM ANCH:M20 X 260STUD CHEM ANCHOR KIT (EXT HEX)HOT DIP GALVANISEDM20260
MCA88GCM240300HMCA123GAL-HX 8.8 CHEM ANCH:M24 X 300STUD CHEM ANCHOR KIT (EXT HEX)HOT DIP GALVANISEDM24300



Additional Information

Diameter x Length:

M12 x 160mm, M16 x 190mm, M20 x 260mm, M24 x 300mm
