Description

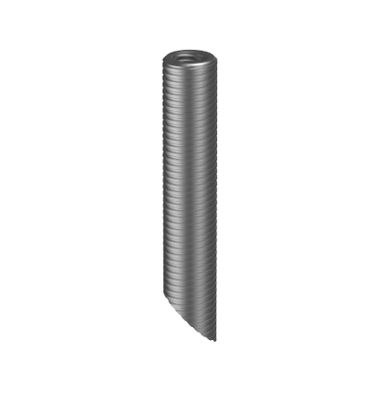

The Internal Threaded Stud Anchor (Zinc) is a single unit nonexpansion fastener that is used in pre-drilled holes into a selected/ specified resin. It comprises of a chisel/bevelled tip and metric internal threads. The internal threads allow the use of conventional metric fasteners (bolts/threaded rods). Fixing of the stud is achieved by inserting a suitable curing resin into the hole using a glass chemical capsule or injection adhesive system. The stud is then inserted into the hole and rotated to allow for proper setting into the resin.
Applications
• Fixing to concrete of masonry substrates
• Temporary fixings/ removable applications
• Applications that require non-expansion type fasteners
• Applications that require closer edge distance and spacing
Features
• Flush setting
• Non-expanding anchor
• No expansion forces on the concrete
• Eliminates risk of concrete blow out
• Can be installed close to edge
• Reduced spacing between anchors
| Part | QFind | Description | Product | Finish | Size | Len |
|---|---|---|---|---|---|---|
| MCIMSZDM080090 | MCI100 | Z/P INT THRD ANCH: M8 X 90 | INTERNAL THREAD STUD ANCHOR | ZINC PLATED (ROHS COMPLIANT) | M8 | 90 |
| MCIMSZDM100090 | MCI101 | Z/P INT THRD ANCH: M10 X 90 | INTERNAL THREAD STUD ANCHOR | ZINC PLATED (ROHS COMPLIANT) | M10 | 90 |
| MCIMSZDM120090 | MCI102 | Z/P INT THRD ANCH: M12 X 90 | INTERNAL THREAD STUD ANCHOR | ZINC PLATED (ROHS COMPLIANT) | M12 | 90 |
| MCIMSZDM120125 | MCI103 | Z/P INT THRD ANCH: M12 X 125 | INTERNAL THREAD STUD ANCHOR | ZINC PLATED (ROHS COMPLIANT) | M12 | 125 |
| MCIMSZDM160125 | MCI104 | Z/P INT THRD ANCH: M16 X 125 | INTERNAL THREAD STUD ANCHOR | ZINC PLATED (ROHS COMPLIANT) | M16 | 125 |
| MCIMSZDM200180 | MCI105 | Z/P INT THRD ANCH: M20 X 180 | INTERNAL THREAD STUD ANCHOR | ZINC PLATED (ROHS COMPLIANT) | M20 | 180 |
