Self Drilling Wing Screw Class 3 (Strip) – Compatible with M-TCH7390K and M-TCH7392SFK

From $203.50

Clear

Description

Muro Screw Brochure

Decking Brochure

Product Summary

Compatible with M-TCH7390K and M-TCH7392SFK.

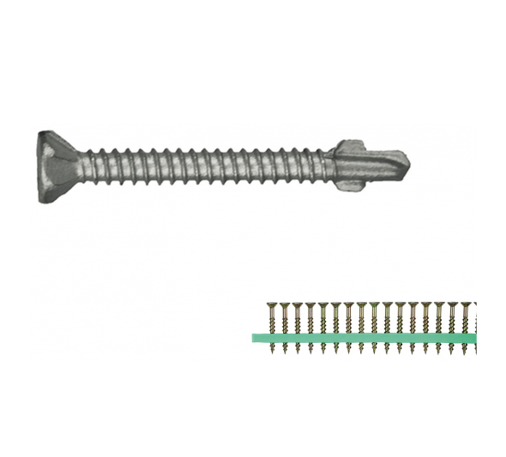

Collated self drilling countersunk wing tek screws are ideal for fixing timber to steel without the need to pre-drill. These screws have a hardened steel self drilling point (tek point) which cuts through mild steel without the need for pre-drilling. The two protruding wings create clearance through the timber and break off during entry into the steel. The reduced pressure between the screw and the timber reduce the chance of timber expansion snapping the screw. The aggressive self embedding head means this screw can be quickly applied without the need to pre-drill or countersink, saving a huge amount of time during application. This coiled screw is compatible with the Muro M-TCH7390K and M-TCH7392SFK, which makes it perfect for fixing subfloor to steel joists and other high volume floor fixing applications.

Features
• For use with M-TCH7390K and M-TCH7392SFK collated screw guns
• Class 3 galvanised coating, perfect for internal or external use
• Aggressive self-embedding head
• Wings to aid in countersinking and reduce the chance of screw snapping
• No pre-drilling (please see material thickness for drilling capacities)Applications
• Timber to steel applications
• Subfloor to steel joists and other high volume floor fixing applications
• Applications that need a screw that pre-drills and countersinks itself (fast, repetitive applications)
• Application seeking a discrete finish (self-embedding head)



Additional Information

Size

M136 SELF DRILLING C3 WING 8 X 32MM STRIP (RS8114GMS-S), M138 SELF DRILLING C3 WING 8 X 42MM STRIP (RS8158GMSU), M140 SELF DRILLING C3 WING 10 X 42MM STRIP (RS0158GMSU-S), M141 SELF DRILLING C3 WING 10 X 50MM STRIP (RS0200GMSU-S)
