Description

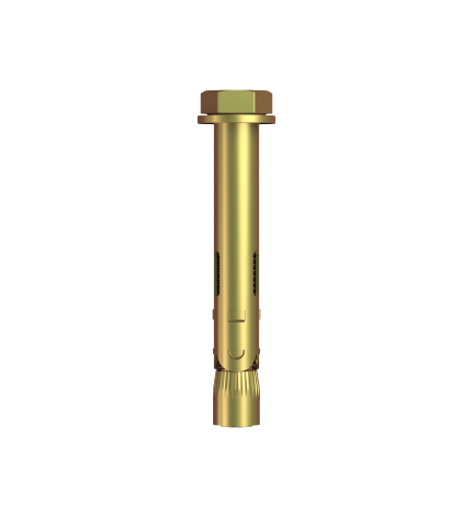

Tygabolt Sleeve Anchor Flush Head Class 8.8 Zinc Yellow
The Tygabolt® is a pre-assembled single unit wedge-type anchors used in solid concrete applications. Fixing is achieved by controlled torquing of the head which draws the cone section up into the sleeve, thereby expanding it outward and forcing the Tygabolt® against the sidewall of the pre-drilled hole.
• Suitable for light to medium duty loads
• Quick and easy to install
• Immediate loading is possible
• Internally threaded for neat final appearance
• Hand rail fastening
• Form-work support fastening
• Mechanical, electrical and pipe bracket fastening
| Part | QFind | Description | Product | Finish | Size | Len |
|---|---|---|---|---|---|---|
| MTH88YM080045 | MTH108 | ZYP 8.8 TYGA FLUSH: 8MM X 45 | TYGABOLT (FLUSH SLEEVE ANCHOR) | ZINC YELLOW PASSIVATEZINC YELLOW PASSIVATE | 8mm | 45 |
| MTH88YM080070 | MTH109 | ZYP 8.8 TYGA FLUSH: 8MM X 70 | TYGABOLT (FLUSH SLEEVE ANCHOR) | ZINC YELLOW PASSIVATEZINC YELLOW PASSIVATE | 8mm | 70 |
| MTH88YM080090 | MTH110 | ZYP 8.8 TYGA FLUSH: 8MM X 90 | TYGABOLT (FLUSH SLEEVE ANCHOR) | ZINC YELLOW PASSIVATEZINC YELLOW PASSIVATE | 8mm | 90 |
| MTH88YM100045 | MTH111 | ZYP 8.8 TYGA FLUSH: 10MM X 45 | TYGABOLT (FLUSH SLEEVE ANCHOR) | ZINC YELLOW PASSIVATEZINC YELLOW PASSIVATE | 10mm | 45 |
| MTH88YM100055 | MTH112 | ZYP 8.8 TYGA FLUSH: 10MM X 55 | TYGABOLT (FLUSH SLEEVE ANCHOR) | ZINC YELLOW PASSIVATEZINC YELLOW PASSIVATE | 10mm | 55 |
| MTH88YM100065 | MTH113 | ZYP 8.8 TYGA FLUSH: 10MM X 65 | TYGABOLT (FLUSH SLEEVE ANCHOR) | ZINC YELLOW PASSIVATEZINC YELLOW PASSIVATE | 10mm | 65 |
| MTH88YM100080 | MTH114 | ZYP 8.8 TYGA FLUSH: 10MM X 80 | TYGABOLT (FLUSH SLEEVE ANCHOR) | ZINC YELLOW PASSIVATEZINC YELLOW PASSIVATE | 10mm | 80 |
| MTH88YM100100 | MTH115 | ZYP 8.8 TYGA FLUSH: 10MM X 100 | TYGABOLT (FLUSH SLEEVE ANCHOR) | ZINC YELLOW PASSIVATEZINC YELLOW PASSIVATE | 10mm | 100 |
| MTH88YM120065 | MTH116 | ZYP 8.8 TYGA FLUSH: 12MM X 65 | TYGABOLT (FLUSH SLEEVE ANCHOR) | ZINC YELLOW PASSIVATEZINC YELLOW PASSIVATE | 12mm | 65 |
| MTH88YM120080 | MTH117 | ZYP 8.8 TYGA FLUSH: 12MM X 80 | TYGABOLT (FLUSH SLEEVE ANCHOR) | ZINC YELLOW PASSIVATEZINC YELLOW PASSIVATE | 12mm | 80 |
| MTH88YM120105 | MTH118 | ZYP 8.8 TYGA FLUSH: 12MM X 105 | TYGABOLT (FLUSH SLEEVE ANCHOR) | ZINC YELLOW PASSIVATEZINC YELLOW PASSIVATE | 12mm | 105 |
| MTH88YM160075 | MTH119 | ZYP 8.8 TYGA FLUSH: 16MM X 75 | TYGABOLT (FLUSH SLEEVE ANCHOR) | ZINC YELLOW PASSIVATEZINC YELLOW PASSIVATE | 16mm | 75 |
| MTH88YM160110 | MTH120 | ZYP 8.8 TYGA FLUSH: 16MM X 110 | TYGABOLT (FLUSH SLEEVE ANCHOR) | ZINC YELLOW PASSIVATEZINC YELLOW PASSIVATE | 16mm | 110 |
