Description

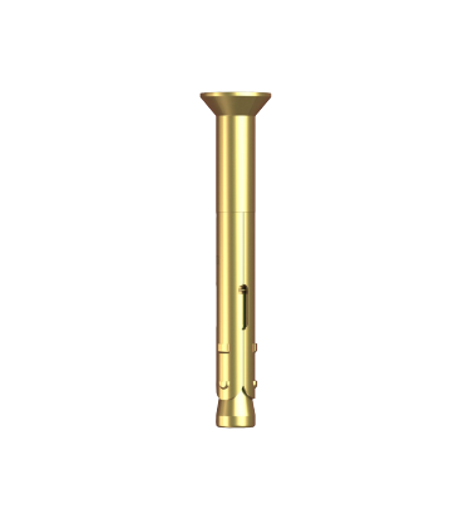

Tygabolt Sleeve Anchor Countersunk Class 8.8 Zinc Yellow
The Tygabolt® (Countersunk head) is a pre-assembled single unit wedgetype anchors used in solid concrete applications. Fixing is achieved by controlled torquing of the head which draws the cone section up in the sleeve, thereby expanding it outward and forcing the Tygabolt® against the sidewall of the pre-drilled hole.
Features
• Suitable for light to medium duty loads
• Quick and easy to install
• Immediate loading is possible
• Internally threaded countersunk head for flush finish
• Expansion claws that prevent rotation during tightening
• Cold formed cone for efficient expansion
Applications
• Hand rail fastening
• Form-work support fastening
• Mechanical, electrical and pipe bracket fastening
| Part | QFind | Description | Product | Finish | Size | Len |
|---|---|---|---|---|---|---|
| MTC88YM065035 | MTC100 | ZYP 8.8 CSK TYGA:6.5MM X 35 | TYGABOLT CSK (SLEEVE ANCHOR) | ZINC YELLOW PASSIVATEZINC YELLOW PASSIVATE | 6.5mm | 35 |
| MTC88YM065055 | MTC101 | ZYP 8.8 CSK TYGA:6.5MM X 55 | TYGABOLT CSK (SLEEVE ANCHOR) | ZINC YELLOW PASSIVATEZINC YELLOW PASSIVATE | 6.5mm | 55 |
| MTC88YM065075 | MTC102 | ZYP 8.8 CSK TYGA:6.5MM X 75 | TYGABOLT CSK (SLEEVE ANCHOR) | ZINC YELLOW PASSIVATEZINC YELLOW PASSIVATE | 6.5mm | 75 |
| MTC88YM065100 | MTC103 | ZYP 8.8 CSK TYGA:6.5MM X 100 | TYGABOLT CSK (SLEEVE ANCHOR) | ZINC YELLOW PASSIVATEZINC YELLOW PASSIVATE | 6.5mm | 100 |
| MTC88YM080060 | MTC104 | ZYP 8.8 CSK TYGA: 8MM X 60 | TYGABOLT CSK (SLEEVE ANCHOR) | ZINC YELLOW PASSIVATEZINC YELLOW PASSIVATE | 8mm | 60 |
| MTC88YM080085 | MTC105 | ZYP 8.8 CSK TYGA: 8MM X 85 | TYGABOLT CSK (SLEEVE ANCHOR) | ZINC YELLOW PASSIVATEZINC YELLOW PASSIVATE | 8mm | 85 |
| MTC88YM100075 | MTC106 | ZYP 8.8 CSK TYGA: 10MM X 75 | TYGABOLT CSK (SLEEVE ANCHOR) | ZINC YELLOW PASSIVATEZINC YELLOW PASSIVATE | 10mm | 75 |
| MTC88YM100100 | MTC107 | ZYP 8.8 CSK TYGA: 10MM X 100 | TYGABOLT CSK (SLEEVE ANCHOR) | ZINC YELLOW PASSIVATEZINC YELLOW PASSIVATE | 10mm | 100 |
| MTC88YM100120 | MTC108 | ZYP 8.8 CSK TYGA: 10MM X 120 | TYGABOLT CSK (SLEEVE ANCHOR) | ZINC YELLOW PASSIVATEZINC YELLOW PASSIVATE | 10mm | 120 |
