Dynabolt/Tygabolt/Sleeve Anchors Flush Head 316 Stainless

From $77.00

Clear

Description

[Product Data Sheet]

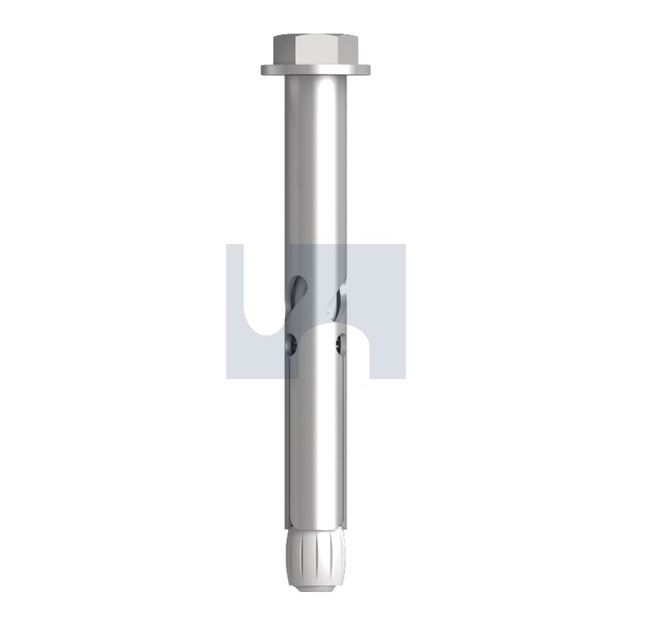

The Tygabolt® is a pre-assembled single unit wedge-type anchors used in solid concrete applications. Fixing is achieved by controlled torquing of the head which draws the cone section up into the sleeve, thereby expanding it outward and forcing the Tygabolt® against the sidewall of the pre-drilled hole.

Applications
• Hand rail fastening
• External furniture fixing
• Mechanical, electrical and pipe bracket fastening

Features
• Suitable for light to medium duty loads
• Quick and easy to install
• Immediate loading is possible
• 316 stainless for high corrosion resistance





PartQFindDescriptionProductFinishSizeLen
MTH16PM080045MTH100316 TYGABOLT FLUSH: 8MM X 45TYGABOLT (FLUSH SLEEVE ANCHOR)316 STAINLESS8mm45
MTH16PM080070MTH101316 TYGABOLT FLUSH: 8MM X 70TYGABOLT (FLUSH SLEEVE ANCHOR)316 STAINLESS8mm70
MTH16PM080090MTH102316 TYGABOLT FLUSH: 8MM X 90TYGABOLT (FLUSH SLEEVE ANCHOR)316 STAINLESS8mm90
MTH16PM100045MTH103316 TYGABOLT FLUSH: 10MM X 45TYGABOLT (FLUSH SLEEVE ANCHOR)316 STAINLESS10mm45
MTH16PM100060MTH104316 TYGABOLT FLUSH: 10MM X 60TYGABOLT (FLUSH SLEEVE ANCHOR)316 STAINLESS10mm60
MTH16PM100075MTH105316 TYGABOLT FLUSH: 10MM X 75TYGABOLT (FLUSH SLEEVE ANCHOR)316 STAINLESS10mm75
MTH16PM100095MTH106316 TYGABOLT FLUSH: 10MM X 95TYGABOLT (FLUSH SLEEVE ANCHOR)316 STAINLESS10mm95
MTH16PM120075MTH107316 TYGABOLT FLUSH: 12MM X 75TYGABOLT (FLUSH SLEEVE ANCHOR)316 STAINLESS12mm75



Additional Information

Diameter x Length:

8mm x 45mm, 8mm x 70mm, 8mm x 90mm, 10mm x 45mm, 10mm x 60mm, 10mm x 75mm, 10mm x 95mm, 12mm x 75mm
