Clawbolt/Wedge Anchor/Through Bolt Class 5.8 Mechanical Galvanised

From $16.50

Clear

Description

[Product Information]

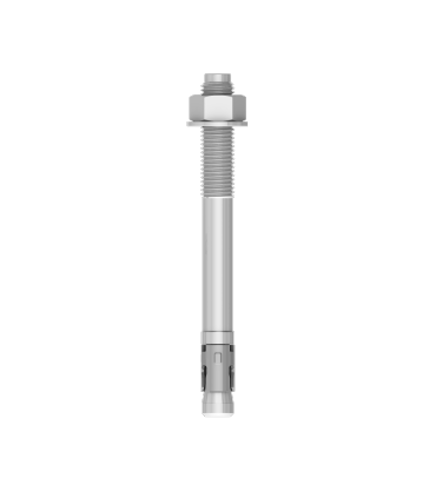

Clawbolts® (Through Bolts) are pre-assembled single unit wedge type anchors used in solid concrete applications. Fixing is achieved by controlled torquing of the nut which draws the tapered section up into the clip, thereby expanding
it outward and forcing the Clawbolt® against the sidewall of the pre-drilled hole.

Features
• Suitable for light to medium duty loads
• Suitable for standard and reduced embedment depths
• Quick and easy to install
• Immediate loading is possible

Applications
• Hand rail fastening
• Formwork support fastening
• Mechanical, electrical and pipe bracket fixing
• Facade installation
• Stadium seating
• Guide and hand rails
• Steel fabricators
• Electricians
• Mechanical service installers
• Air conditioning, heating and ventilation installers (HVAC)
• Racking and material handling installers





PartQFindDescriptionProductFinishSizeLen
MAW58GCM080080MAW127MGAL CL5.8 CLAW BOLT:M8 X 80CLAWBOLT (WEDGE ANCHOR)MECHANICAL GALVANISEDM880
MAW58GCM080100MAW128MGAL CL5.8 CLAW BOLT:M8 X 100CLAWBOLT (WEDGE ANCHOR)MECHANICAL GALVANISEDM8100
MAW58GCM080120MAW129MGAL CL5.8 CLAW BOLT:M8 X 120CLAWBOLT (WEDGE ANCHOR)MECHANICAL GALVANISEDM8120
MAW58GCM100065MAW130MGAL CL5.8 CLAW BOLT:M10 X 65CLAWBOLT (WEDGE ANCHOR)MECHANICAL GALVANISEDM1065
MAW58GCM100090MAW131MGAL CL5.8 CLAW BOLT:M10 X 90CLAWBOLT (WEDGE ANCHOR)MECHANICAL GALVANISEDM1090
MAW58GCM100120MAW132MGAL CL5.8 CLAW BOLT:M10 X 120CLAWBOLT (WEDGE ANCHOR)MECHANICAL GALVANISEDM10120
MAW58GCM120080MAW133MGAL CL5.8 CLAW BOLT:M12 X 80CLAWBOLT (WEDGE ANCHOR)MECHANICAL GALVANISEDM1280
MAW58GCM120100MAW134MGAL CL5.8 CLAW BOLT:M12 X 100CLAWBOLT (WEDGE ANCHOR)MECHANICAL GALVANISEDM12100
MAW58GCM120120MAW157MGAL CL5.8 CLAW BOLT:M12 X 120CLAWBOLT (WEDGE ANCHOR)MECHANICAL GALVANISEDM12120
MAW58GCM120140MAW135MGAL CL5.8 CLAW BOLT:M12 X 140CLAWBOLT (WEDGE ANCHOR)MECHANICAL GALVANISEDM12140
MAW58GCM120160MAW156MGAL CL5.8 CLAW BOLT:M12 X 160CLAWBOLT (WEDGE ANCHOR)MECHANICAL GALVANISEDM12160
MAW58GCM120180MAW155MGAL CL5.8 CLAW BOLT:M12 X 180CLAWBOLT (WEDGE ANCHOR)MECHANICAL GALVANISEDM12180



Additional Information

DIAMETER x LENGTH:

M8 x 80mm, M8 x 100mm, M8 x 120mm, M10 x 65mm, M10 x 90mm, M10 x 120mm, M12 x 80mm, M12 x 100mm, M12 x 140mm, M12 x 160mm, M12 x 180mm, M16 x 105mm, M16 x 125mm, M16 x 140mm, M16 x 190mm
