Description

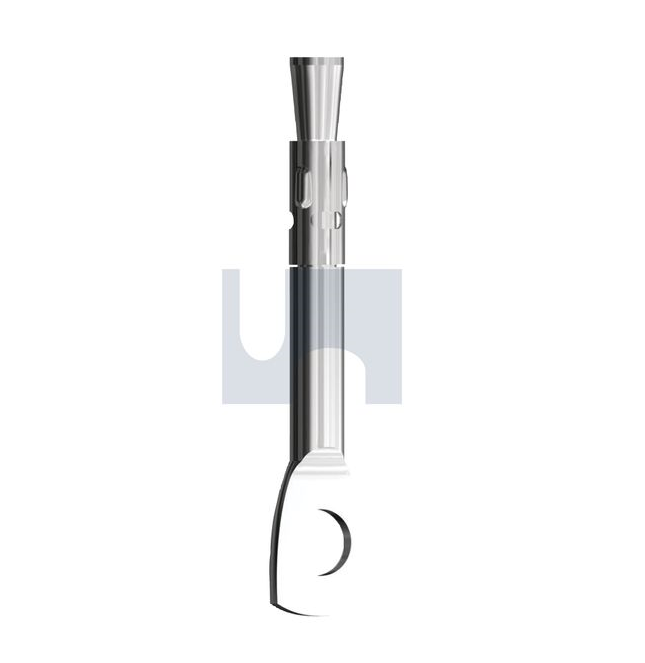

The Tie Wire Suspension Anchor is a fast and reliable fixing solution for suspended ceiling systems, cable supports and conduit installations. The pre-assembled design allows for quick installation while the expansion clip provides secure anchorage in concrete and concrete block substrates.
Manufactured from carbon steel with a Zinc Yellow Passivate (ZYP) finish, the anchor delivers dependable performance for indoor construction and building services applications. Installation is completed by inserting the anchor into the drilled hole and striking the eye with a claw hammer to expand the clip.
Features
- Pre-assembled expansion anchor for quick installation
- Expansion clip provides maximum setting capacity during installation
- Hole diameter matches anchor body diameter
- Carbon steel construction
- Zinc Yellow Passivate (ZYP) finish
- Eyelet design for suspending wire, cable ties and conduit
- Suitable for concrete and concrete block
- Professional trade quality
Suitable for:
- Suspended ceiling systems
- Tie wire suspension
- Conduit suspension
- Cable support installations
- Electrical services
- Mechanical services
- Concrete
- Concrete block
Specifications
| Property | Specification |
|---|---|
| Brand | Hobson |
| Product | Tie Wire Suspension Anchor |
| Part Number | MSTMSYM060060 |
| QFind | MST100 |
| Material | Carbon Steel |
| Finish | Zinc Yellow Passivate (ZYP) |
| Thread/Eye Size | M6 |
| Length | 60mm |
| Drill Hole Diameter | 6mm |
| Minimum Drill Depth | 45mm |
| Eye Diameter | 6mm |
| Pack Quantity | 100 |
Performance
| Property | Value |
| Concrete Strength | 32 MPa |
| Embedment Depth | 30mm |
| Minimum Spacing | 90mm |
| Minimum Edge Distance | 45mm |
| Working Load (Tension) | 0.65 kN |
Note: Working load is the governing minimum allowable load. Factors of Safety of 2.5 for steel and 3.0 for concrete are already included.
Available Sizes
| Part Number | QFind | Size | Length | Drill Hole | Min. Drill Depth | Eye Diameter |
| MSTMSYM060060 | MST100 | M6 | 60mm | 6mm | 45mm | 6mm |
Installation
- Drill a 6mm diameter hole to a minimum depth of 45mm.
- Remove dust and debris from the hole.
- Insert the anchor fully into the hole.
- Strike the eye of the anchor with a claw hammer until the expansion clip is fully set.
- Attach tie wire, conduit or cable support.
Why Choose Tie Wire Suspension Anchors?
Tie Wire Suspension Anchors provide a fast and dependable fixing solution for suspended services in concrete and concrete block. The pre-assembled expansion clip simplifies installation while delivering secure anchorage for suspended ceilings, conduit and cable support systems.
