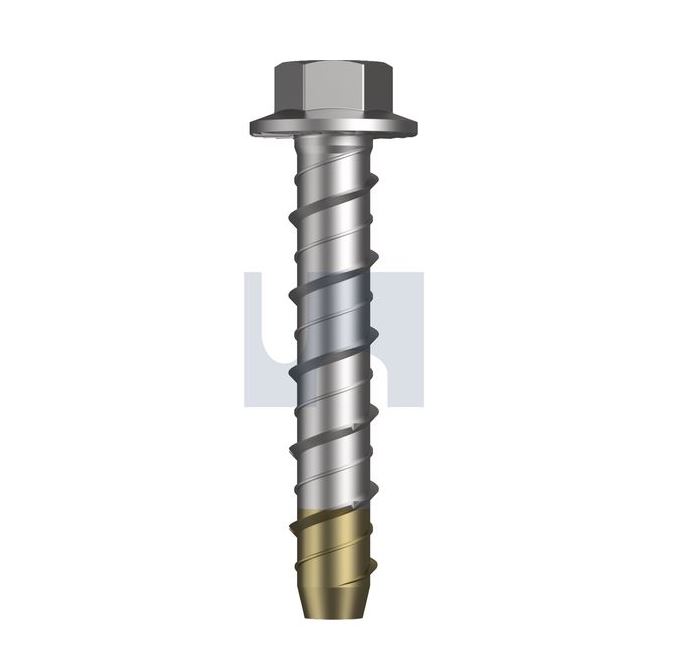

Hex Head Masonry Screw Xbolt Pro E1F Bi-316 Stainless Steel

From $204.60

Clear

Description

[Product information]

Xbolt PROs are a single unit screw type anchors that are used in solid concrete applications. Fixing is achieved by screwing the anchor into the hole. As it is screwed in, it creates it own undercut by tapping the concrete hole. The cutting and locking mechanism, enables the anchor to be used in close spacing and edge distance applications.



Features:

  • Provides the advantages and benefits of 316 stainless plus the heat-treated alloy point
  • Hardened alloy point for fast and consistent installation
  • Suitable for medium to heavy loads
  • Suitable for small anchor spacing and edge distance applications
  • Quick and easy to install
  • Fully removable

Applications:

  • For high corrosion resistance- such as severe marine environments
  • Fertiliser facilities
  • Chemical and petrochemical plants
  • Pharmaceutical and brewery plants
  • Kitchens and food preparation
PartQFindDescriptionFinishSizeLength
EXH6XP15M060080EXH120BI-316 E1F XBOLT HEX:M6 X 80BI-METAL 316 STAINLESSM680
EXH6XP15M080090EXH121BI-316 E1F XBOLT HEX:M8 X 90BI-METAL 316 STAINLESSM890
EXH6XP15M080100EXH122BI-316 E1F XBOLT HEX:M8 X 100BI-METAL 316 STAINLESSM8100
EXH6XP15M100105EXH123BI-316 E1F XBOLT HEX:M10 X 105BI-METAL 316 STAINLESSM10105
EXH6XP15M100120EXH124BI-316 E1F XBOLT HEX:M10 X 120BI-METAL 316 STAINLESSM10120
EXH6XP15M120150EXH125BI-316 E1F XBOLT HEX:M12 X 150BI-METAL 316 STAINLESSM12150

Additional Information

DIAMETER x LENGTH:

M6 x 80mm, M8 x 90mm, M8 x 100mm, M10 x 105mm, M10 x 120mm, M12 x 150mm
