Iccons Thunderbolt Pro Hex Gal – ETA

From $56.32

Clear

Description

[Thunderbolt Clamping Torque Impact Driver Spec Sheet]

[Thunderbolt Pro Installation Guide]

[Thunderbolt PRO 16mm TDS]

[Thunderbolt Pro Approved TDS]

Product Summary

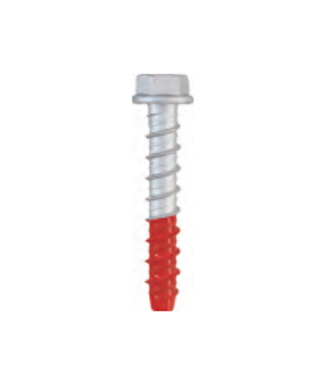

ICCONS® Thunderbolt®PRO Hex Head is the latest high tensile screw-in, self tapping concrete and masonry screw anchor for use in a wide range of applications found in the residential, commercial and infrastructure construction spaces. The Thunderbolt®PRO is the most complete screw-bolt range on the market with the entire range AS5216:2021 Compliant, ETA assessments for cracked concrete, fire performance and seismic ratings (please see technical data for specification requirements).

Installation is quick and easy, simply drill, clean the hole and screw in the anchor. The Thunderbolt®PRO can be easily removed and does not leave residue or metal components in the drilled hole that can cause corrosion. Available in zinc and galvanised finishes, both hex and countersunk head styles and ranging from 5mm to 18mm in various lengths, ICCONS® new and improved Thunderbolt®PRO is the anchor for all applications.

ICCONS Thunderbolt®Pro achieves the Highest Loads while generating Low Expansion forces which can make it a great alternative to adhesive anchors. The Thunderbolt®Pro is also completely removable making it ideal for temporary applications. Unlike mechanical expansion anchors, the Thunderbolt®Pro keys into the base material for the entire depth and diameter of the hole, not just at the base of the hole. This reduces high energy forces within the concrete allowing close anchor spacing and near-to edge anchor locations. 10 sharp thread forming teeth ensure the most secure connection in hard base materials. The Thunderbolt®Pro is a truly versatile anchor, as it can be installed in whole range of base materials such as concrete, block, brick, timber, marble, and stone, just to name a few. The precisely engineered design of ICCONS Thunderbolt®Pro is the result of extensive testing and provides market leading load performance. ICCONS Thunderbolt®Pro is a one piece, fast, efficient and cost effective fixing solution for any job.



Part NumberDescriptionSize
SXTB05050GTHUNDERBOLT PRO HEX 5 X 50MM GAL – ETA RNSS5 X 50MM
SXTB06040GTHUNDERBOLT PRO HEX 6 X 40MM GAL – ETA OPT 1 & RNSS6 X 40MM
SXTB06050GTHUNDERBOLT PRO HEX 6 X 50MM GAL – ETA SEISMIC6 X 50MM
SXTB06075GTHUNDERBOLT PRO HEX 6 X 75MM GAL – ETA SEISMIC6 X 75MM
SXTB06100GTHUNDERBOLT PRO HEX 6 X 100MM GAL – ETA SEISMIC6 X 100MM
SXTB08055GTHUNDERBOLT PRO HEX 8 X 55MM GAL – ETA SEISMIC8 X 55MM
SXTB08060GTHUNDERBOLT PRO HEX 8 X 60MM GAL – ETA SEISMIC8 X 60MM
SXTB08075GTHUNDERBOLT PRO HEX 8 X 75MM GAL – ETA SEISMIC8 X 75MM
SXTB08100GTHUNDERBOLT PRO HEX 8 X 100MM GAL – ETA SEISMIC8 X 100MM
SXTB10060GTHUNDERBOLT PRO HEX 10 X 60MM GAL – ETA OPT 110 X 60MM
SXTB10075GTHUNDERBOLT PRO HEX 10 X 75MM GAL – ETA OPT 110 X 75MM
SXTB10100GTHUNDERBOLT PRO HEX 10 X 100MM GAL – ETA SEISMIC10 X 100MM
SXTB10120GTHUNDERBOLT PRO HEX 10 X 120MM GAL – ETA SEISMIC10 X 120MM
SXTB10200GTHUNDERBOLT PRO HEX 10 X 200MM GAL – ETA SEISMIC10 X 200MM
SXTB12080GTHUNDERBOLT PRO HEX 12 X 80MM GAL – ETA OPT 112 X 80MM
SXTB12100GTHUNDERBOLT PRO HEX 12 X 100MM GAL – ETA OPT 112 X 100MM
SXTB12120GTHUNDERBOLT PRO HEX 12 X 120MM GAL – ETA SEISMIC12 X 120MM
SXTB12150GTHUNDERBOLT PRO HEX 12 X 150MM GAL – ETA SEISMIC12 X 150MM
SXTB16100GTHUNDERBOLT PRO HEX 16 X 100MM GALV – ETA OPT 116 X 100MM
SXTB16150GTHUNDERBOLT PRO HEX 16 X 150MM GAL – ETA OPT 116 X 150MM
SXTB16200GTHUNDERBOLT PRO HEX 16 X 200MM GAL – ETA OPT 116 X 200MM
SXTB14080GTHUNDERBOLT PRO HEX 14 X 80MM GAL – ETA OPT 114 X 80MM
SXTB14100GTHUNDERBOLT PRO HEX 14 X 100MM GAL – ETA OPT 114 X 100MM
SXTB14130GTHUNDERBOLT PRO HEX 14 X 130MM GAL – ETA SEISMIC14 X 130MM
SXTB14150GTHUNDERBOLT PRO HEX 14 X 150MM GAL – ETA SEISMIC14 X 150MM
SXTB18100GTHUNDERBOLT PRO HEX 18 X 100MM GAL – ETA OPT 118 X 100MM
SXTB18150GTHUNDERBOLT PRO HEX 18 X 150MM GAL – ETA SEISMIC18 X 150MM
SXTB18200GTHUNDERBOLT PRO HEX 18 X 200MM GAL – ETA SEISMIC18 X 200MM
SXTB18300GTHUNDERBOLT PRO HEX 18 X 300MM GAL – ETA SEISMIC18 X 300MM

Additional Information

Size:

5 x 50mm, 6 x 40mm, 6 x 45mm, 6 x 50mm, 6 x 60mm, 6 x 75mm, 6 x 100mm, 8 x 55mm, 8 x 60mm, 8 x 70mm, 8 x 75mm, 8 x 100mm, 8 x 140mm, 10 x 60mm, 10 x 75mm, 10 x 90mm, 10 x 100mm, 10 x 120mm, 10 x 150mm, 10 x 200mm, 12 x 80mm, 12 x 100mm, 12 x 120mm, 12 x 150mm, 12 x 200mm, 14 x 80mm, 14 x 100mm, 14 x 130mm, 14 x 150mm, 16 x 100mm, 16 x 150mm, 16 x 200mm, 18 x 100mm, 18 x 150mm, 18 x 170mm, 18 x 200mm, 18 x 300mm
