Description

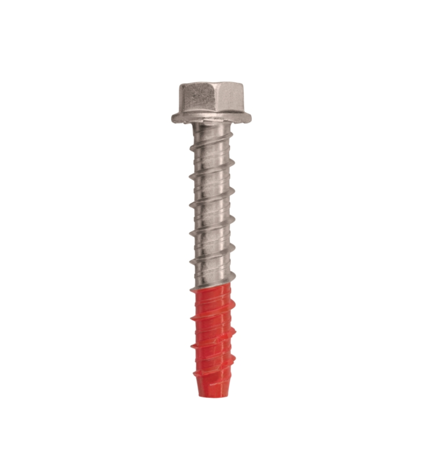

Iccons Thunderbolt Pro Hex ETA 316 Stainless
Features
• Optimum high-performance concrete and masonry screw bolt anchor
• AS 5216 compliant
• ETA assessed for cracked concrete and fire performance
• Hex head design with “lightning bolt” locking serrations for a secure fix
• Also available in Countersunk Head and Internal thread head designs
• Stamped head markings for easy identification and traceability
• Zinc, corrosion resistant Nautilus C and stainless steel coating options
• Fast installation at reduced torque
• No expansion, ideal for close to edge applications
• Suitable for installation with impact drivers
• Removable
• Available on ICCONS DesignPRO software
Applications
• Structural fixings in cracked and uncracked concrete
• Tunnel fit out
• Cable tray support systems
• Seismic bracing of MEP systems
• Fastening steel strut channel and support straps for MEP
• Facade structures
• Guard rails
• Bollards and protective barriers
• Machinery and plant equipment
• Stadium and theatre seating
• Acoustic barriers
• Balustrades and hand rails
• Scaffolding ties
• Formwork
• Plumbing and fire services
• Steel frame construction
• Timber frame construction
• Glazing, windows and storefronts
• Racking and shelving
• Fixings wood structures in concrete
| Part No. | Item Description | Inner Box | Outer Box |
|---|---|---|---|
| SXTB06045SS | HEX 6 X 45MM 316 SS – ETA SEISMIC | 100 | 1200 |
| SXTB06050SS | HEX 6 X 50MM 316 SS – ETA SEISMIC | 100 | 600 |
| SXTB06060SS | HEX 6 X 60MM 316 SS – ETA SEISMIC | 100 | 600 |
| SXTB06075SS | HEX 6 X 75MM 316 SS – ETA SEISMIC | 100 | 600 |
| SXTB06100SS | HEX 6 X 100MM 316 SS – ETA SEISMIC | 100 | 400 |
| SXTB08055SS | HEX 8 X 55MM 316 SS – ETA SEISMIC | 100 | 600 |
| SXTB08070SS | HEX 8 X 70MM 316 SS – ETA SEISMIC | 100 | 400 |
| SXTB08075SS | HEX 8 X 75MM 316 SS – ETA SEISMIC | 100 | 400 |
| SXTB08090SS | HEX 8 X 90MM 316 SS – ETA SEISMIC | 100 | 400 |
| SXTB08100SS | HEX 8 X 100MM 316 SS – ETA SEISMIC | 100 | 400 |
| SXTB10060SS | HEX 10 X 60MM 316 SS – ETA SEISMIC | 50 | 300 |
| SXTB10075SS | HEX 10 X 75MM 316 SS – ETA SEISMIC | 50 | 200 |
| SXTB10080SS | HEX 10 X 80MM 316 SS – ETA SEISMIC | 50 | 200 |
| SXTB10090SS | HEX 10 X 90MM 316 SS – ETA SEISMIC | 50 | 200 |
| SXTB10100SS | HEX 10 X 100MM 316 SS – ETA SEISMIC | 50 | 200 |
| SXTB10110SS | HEX 10 X 110MM 316 SS – ETA SEISMIC | 50 | 200 |
| SXTB10120SS | HEX 10 X 120MM 316 SS – ETA SEISMIC | 50 | 200 |
| SXTB12080SS | HEX 12 X 80MM 316 SS – ETA SEISMIC | 50 | 200 |
| SXTB12100SS | HEX 12 X 100MM 316 SS – ETA SEISMIC | 50 | 100 |
| SXTB12120SS | HEX 12 X 120MM 316 SS – ETA SEISMIC | 25 | 150 |
| SXTB12150SS | HEX 12 X 150MM 316 SS – ETA SEISMIC | 25 | 100 |
