Description

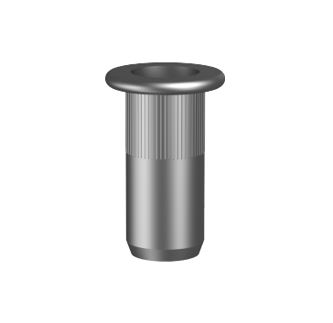

Our Aluminium Rivet Nuts – Flat Round Knurl Open are a versatile blind fastener solution designed for use in sheet metal, aluminium, and plastic applications.
The knurled body prevents rotation during installation, while the flat round head provides a neat finish and reliable load-bearing capacity. With a chamfered end, installation is quick and easy, ensuring a tight fit into pre-drilled holes.
These rivet nuts are perfect where the base material is too thin to be tapped or where the reverse side is inaccessible for a traditional nut and bolt assembly.
✅ Applications
Sheet metal fabrication
Aluminium and plastic fastening
Automotive and industrial repairs
Electrical enclosures and machinery assemblies
✅ Features
Lightweight aluminium body
Knurled/splined design for anti-rotation
Chamfered edge for easy installation
Blind fastener suitable for inaccessible areas
| Part Number | Size | Length (L mm) | Grip Range (G mm) | Hole Diameter (D mm) | Body Diameter (B mm) | Head Diameter (A mm) | Protrusion (P mm) |
|---|---|---|---|---|---|---|---|
| NRALPFKOM04110 | M4 | 11.0 | 0.5 – 2.0 | 6 | 5.9 | 1.0 | 6.0 |
| NRALPFKOM05130 | M5 | 13.0 | 0.5 – 2.5 | 7 | 6.9 | 1.0 | 7.5 |
| NRALPFKOM06160 | M6 | 16.0 | 0.5 – 3.0 | 9 | 8.9 | 1.5 | 9.2 |
| NRALPFKOM08175 | M8 | 17.5 | 0.5 – 3.0 | 11 | 10.9 | 1.5 | 10.2 |
| NRALPFKOM10190 | M10 | 19.0 | 0.5 – 3.0 | 13 | 12.9 | 2.0 | 11.5 |
