Description

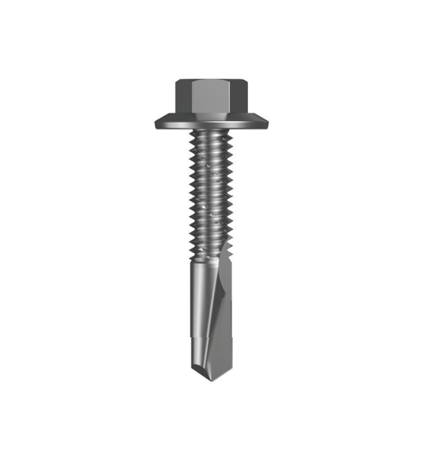

The BDX s500 Flanged Hex Head Self-Drilling Screw is a premium metal-to-metal roofing fastener designed for demanding steel fixing applications. Its extended drill point and fine 24 TPI thread allow self-drilling in steel up to 12mm thickness, making it suitable for insulated roofing panels, crest fixing and general metal roofing installations.
Manufactured from hardened C1022 steel and finished with X9 ProteXion® coating, the BDX s500 offers excellent corrosion resistance suitable for ISO 9223 Category 4 environments. The integrated flanged hex head provides increased bearing surface and secure installation using a standard 5/16″ hex drive.
Features
- Extended drill point design
- Fine 24 TPI thread
- Self-drilling in steel up to 12mm thick
- X9 ProteXion® corrosion resistant coating
- Suitable for ISO 9223 Category 4 environments
- Flanged hex head design
- Hardened C1022 steel construction
- Designed for metal roofing and cladding applications
Suitable for:
- Fastening insulated roofing panels to steel
- Crest fixing applications
- Metal-to-metal fixing
- Metal roofing applications
- Suitable for all roofing profiles
- Steel framing applications
Specifications
| Property | Specification |
|---|---|
| Brand | BDX |
| Product | s500 Flanged Hex Head |
| Gauge | 12 Gauge |
| Thread Pitch | 24 TPI |
| Material | Hardened C1022 Steel |
| Finish | X9 ProteXion® Coating |
| Corrosion Classification | ISO 9223 Category 4 |
| Drive Size | 5/16″ Hex |
| Drill Capacity | Steel up to 12mm |
Available Sizes
| Part Number | QFind | Size | Length | Thread Length | Drill Point Length |
|---|---|---|---|---|---|
| T9P59FH1224032 | QH480 | 12G-24 | 32mm | 17mm | 15mm |
| T9P59FH1224038 | QH481 | 12G-24 | 38mm | 23mm | 15mm |
| T9P59FH1224050 | QH482 | 12G-24 | 50mm | 35mm | 15mm |
| T9P59FH1224065 | QH484 | 12G-24 | 65mm | 50mm | 15mm |
| T9P59FH1224085 | QH487 | 12G-24 | 85mm | 70mm | 15mm |
| T9P59FH1224100 | QH492 | 12G-24 | 100mm | 85mm | 15mm |
| T9P59FH1224100 | QH739 | 14G-24 | 38mm | 21mm | 17mm |
Why Choose BDX s500 Self-Drilling Screws?
The BDX s500 range has been specifically engineered for heavy-duty metal-to-metal roofing applications where increased drilling capacity and corrosion resistance are required. The combination of an extended drill point, fine thread design and X9 ProteXion® coating provides reliable fastening performance across a wide range of roofing and cladding installations.
