Description

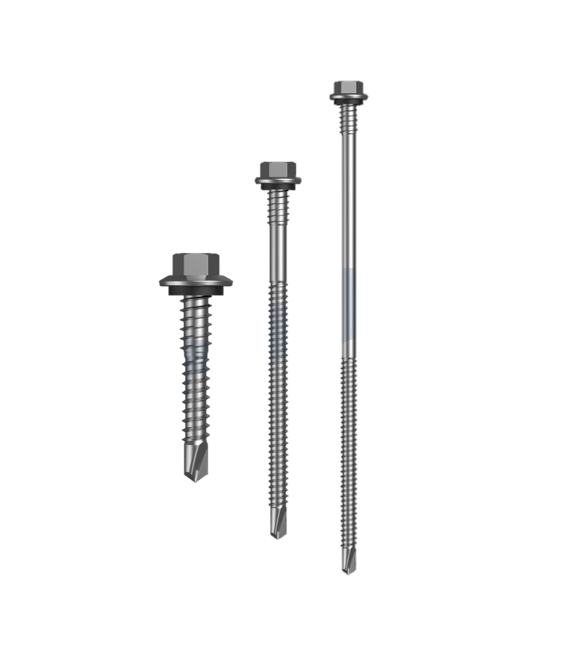

The BDX Metal XGrip hex head self drilling screws are premium fasteners designed for steel-to-steel and roofing applications, delivering high strength and superior weather resistance.
Featuring a self-drilling (Tek) point, these screws eliminate pre-drilling while ensuring fast and efficient installation. The hex head with integrated washer (XGrip system) provides enhanced clamping force and improved sealing, making them ideal for external environments.
The advanced X9 coating delivers excellent corrosion resistance and complies with ISO 9223 / AS4312 Category 4, making these screws suitable for harsh outdoor conditions.
Key Features
- Self drilling (Tek) point – fast installation
- Hex head with bonded washer for sealing and load distribution
- XGrip technology for improved fastening performance
- High strength steel construction
- X9 corrosion-resistant coating
- Suitable for steel-to-steel and roofing applications
- Complies with ISO 9223 / AS4312 Cat 4
Applications
- Roofing and cladding systems
- Steel framework and purlins
- Structural steel connections
- Outdoor construction projects
- Long-span steel fixing applications
Available Sizes
#12-14 x 37 | #12-14 x 43 | #12-14 x 53 | #14-14 x 110 | #14-14 x 125 | #14-14 x 175 | #14-14 x 205
Product Table
| Part Number | QFind | Size | Length (mm) | Drive |
|---|---|---|---|---|
| T9PM9XH1214037 | QH295 | #12-14 | 37 | 5/16″ Hex |
| T9PM9XH1214043 | QH296 | #12-14 | 43 | 5/16″ Hex |
| T9PM9XH1214053 | QHA40 | #12-14 | 53 | 5/16″ Hex |
| T9PM9XH1414110 | QHA20 | #14-14 | 110 | 3/8″ Hex |
| T9PM9XH1414125 | QHA21 | #14-14 | 125 | 3/8″ Hex |
| T9PM9XH1414175 | QHA23 | #14-14 | 175 | 3/8″ Hex |
| T9PM9XH1414205 | QHA24 | #14-14 | 205 | 3/8″ Hex |
Specifications
| Property | Value |
|---|---|
| Product Type | Self Drilling Screw |
| Head Type | Hex Head + Washer |
| Drive Type | Hex (5/16″, 3/8″) |
| Thread | #12-14 / #14-14 |
| Coating | X9 Corrosion Resistant |
| Standard | ISO 9223 / AS4312 Cat 4 |
| Application | Steel to Steel / Roofing |
Why Choose XGrip Screws
- Improved sealing with washer system
- High strength for structural fixing
- Faster install with self-drilling tip
- Ideal for external and corrosive environments
