Description

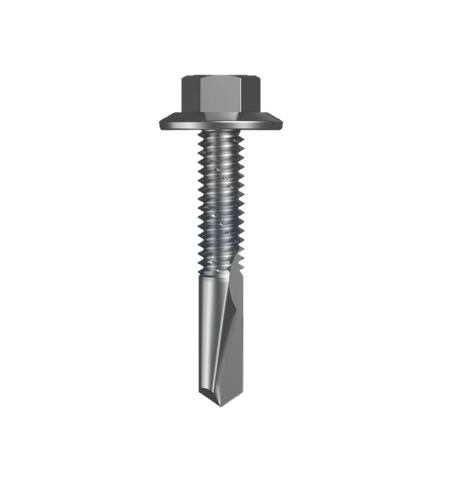

The BDX S500 flanged hex head self drilling screws are high-performance fasteners designed for steel-to-steel fixing in structural and construction applications.
Manufactured to ISO 9223 and AS4312 Category 4, these screws feature a self-drilling tip that eliminates the need for pre-drilling, improving installation speed and efficiency.
The X9 coating system provides enhanced corrosion resistance, making these screws ideal for use in external and harsh environments.
The integrated flanged hex head distributes load effectively and provides a secure, high-strength connection.
Key Features
- Self drilling (Tek) point – no pre-drilling required
- Flanged hex head for improved load distribution
- High strength S500 grade steel
- Advanced X9 corrosion-resistant coating
- Designed for steel-to-steel fastening
- Complies with ISO 9223 / AS4312 Cat 4
Applications
- Structural steel connections
- Roofing and cladding systems
- Purlin and bracket fixing
- Steel framework installation
- Outdoor construction environments
Available Sizes
#12-24 x 32 | #12-24 x 38 | #12-24 x 50 | #12-24 x 85 | #14-24 x 38
Product Table
| Part Number | QFind | Size | Length (mm) | Drive |
|---|---|---|---|---|
| T9P59FH1224032 | QH480 | #12-24 | 32 | 5/16″ Hex |
| T9P59FH1224038 | QH481 | #12-24 | 38 | 5/16″ Hex |
| T9P59FH1224050 | QH482 | #12-24 | 50 | 5/16″ Hex |
| T9P59FH1224085 | QH487 | #12-24 | 85 | 5/16″ Hex |
| T9P59FH1424038 | QH739 | #14-24 | 38 | 3/8″ Hex |
Specifications
| Property | Value |
|---|---|
| Product Type | Self Drilling Screw |
| Head Type | Flanged Hex Head |
| Material Grade | S500 Steel |
| Coating | X9 Corrosion Resistant |
| Thread Type | Self Drilling (Tek) |
| Standard | ISO 9223 / AS4312 Cat 4 |
| Application | Steel to Steel |
Why Choose BDX S500 Screws
- Faster installation with self-drilling tip
- Superior corrosion resistance for outdoor use
- High strength for structural applications
- Reliable performance in harsh environments
