Description

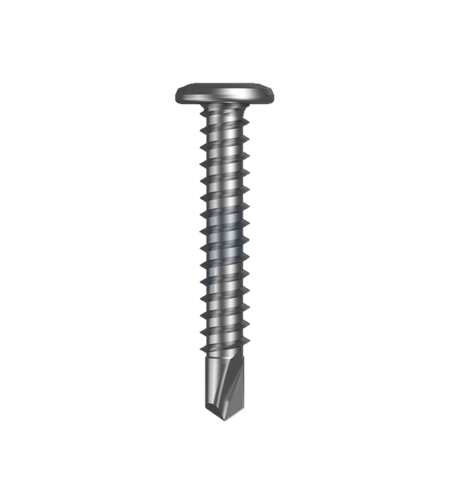

The BDX Metal SDS wafer head self drilling screws are designed for steel-to-steel and sheet metal fastening, providing a clean, low-profile finish where standard hex head screws are not suitable.
Featuring a self-drilling (Tek) point, these screws eliminate the need for pre-drilling, speeding up installation while maintaining strong holding power.
The wafer head design provides a larger bearing surface with a low profile, making it ideal for applications requiring a flush or neat finish.
Finished with X9 corrosion-resistant coating, these screws are suitable for external and corrosive environments, meeting ISO 9223 / AS4312 Category 4 requirements.
Key Features
- Self drilling (Tek) point – no pre-drilling required
- Wafer head for low profile and wide load distribution
- PH2 Phillips drive for easy installation
- High strength steel construction
- X9 coating for superior corrosion resistance
- Suitable for steel-to-steel fastening
- Complies with ISO 9223 / AS4312 Cat 4
Applications
- Sheet metal fixing
- Steel cladding and brackets
- Electrical and HVAC installations
- Light gauge steel construction
- General metal fastening
Available Sizes
#10-16 x 16 | #10-16 x 22 | #10-16 x 30 | #10-16 x 40 | #10-16 x 50
Product Table
| Part Number | QFind | Size | Length (mm) | Drive |
|---|---|---|---|---|
| T9PM9WP1016016 | QH380 | #10-16 | 16 | PH2 |
| T9PM9WP1016022 | QH382 | #10-16 | 22 | PH2 |
| T9PM9WP1016030 | QH384 | #10-16 | 30 | PH2 |
| T9PM9WP1016040 | QH386 | #10-16 | 40 | PH2 |
| T9PM9WP1016050 | QH387 | #10-16 | 50 | PH2 |
Specifications
| Property | Value |
|---|---|
| Product Type | Self Drilling Screw |
| Head Type | Wafer Head |
| Drive Type | PH2 Phillips |
| Thread | #10-16 |
| Coating | X9 Corrosion Resistant |
| Standard | ISO 9223 / AS4312 Cat 4 |
| Application | Steel to Steel / Sheet Metal |
Why Choose Wafer Head SDS Screws
- Low profile head for neat finishes
- Faster installation with self-drilling tip
- Excellent corrosion resistance
- Ideal for thin material and sheet fixing
