Description

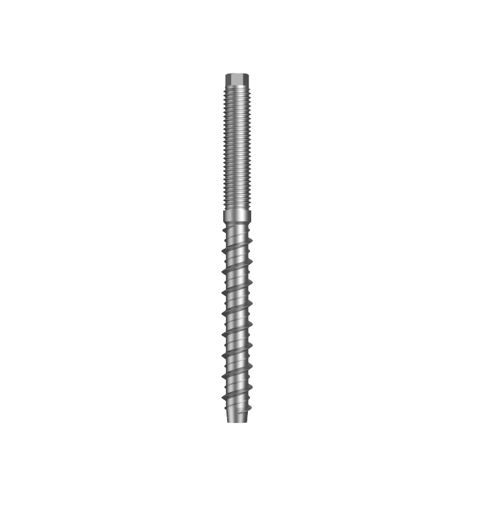

XBolt Pro Stud E1SF ETA OPT 1 / C1 FR Zinc
For heavy duty fixings in cracked and non-cracked concrete.
Performance Category C1 (Ø 10) and C2-C1 (Ø 12; Ø 16) for use under seismic action, according to ETAG 001 – ANNEX E.
Fire resistance R30–R120.
Features
– Through fixing (in-place anchorage)
– Fixing installation independent of the torque control
– Waiting time for loading after installation is not required
– Reduced edge distance and spacing, in comparison with traditional expansion anchors
[CLICK HERE FOR PRODUCT DATA SHEET]
| Part | Description | Product | Finish | Size | Length |
|---|---|---|---|---|---|
| EXSMSZD17M100105 | Z/P E1SF XBOLT STUD:M10 X105 | XBOLT PRO – STUD | ZINC PLATED (ROHS COMPLIANT) | M10 | 105 |
| EXSMSZD17M100125 | Z/P E1SF XBOLT STUD:M10 X125 | XBOLT PRO – STUD | ZINC PLATED (ROHS COMPLIANT) | M10 | 125 |
| EXSMSZD17M100195 | Z/P E1SF XBOLT STUD:M10 X195 | XBOLT PRO – STUD | ZINC PLATED (ROHS COMPLIANT) | M10 | 195 |
| EXSMSZD18M120118 | Z/P E1SF XBOLT STUD:M12 X118 | XBOLT PRO – STUD | ZINC PLATED (ROHS COMPLIANT) | M12 | 118 |
| EXSMSZD18M120138 | Z/P E1SF XBOLT STUD:M12 X138 | XBOLT PRO – STUD | ZINC PLATED (ROHS COMPLIANT) | M12 | 138 |
| EXSMSZD18M120208 | Z/P E1SF XBOLT STUD:M12 X208 | XBOLT PRO – STUD | ZINC PLATED (ROHS COMPLIANT) | M12 | 208 |
| EXSMSZD18M120248 | Z/P E1SF XBOLT STUD:M12 X248 | XBOLT PRO – STUD | ZINC PLATED (ROHS COMPLIANT) | M12 | 248 |
