Description

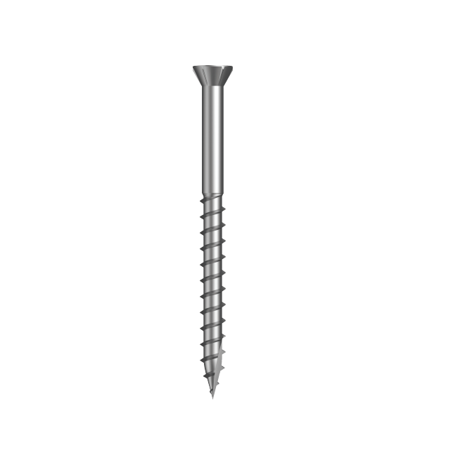

The 304 Stainless Steel Type 17 Trim Head Decking Screw has been specifically designed to provide a clean, professional finish for timber and composite decking projects.
Featuring a low-profile trim head with six self-countersinking ribs, these screws provide an attractive architectural appearance while reducing surface visibility compared to traditional decking screws. The Type 17 point improves installation by reducing splitting in timber and improving cutting performance during installation.
Manufactured from 304 stainless steel, these decking screws offer excellent corrosion resistance and are suitable for a wide range of exterior decking applications. They are ideal for both conventional face fixing and concealed or hidden decking systems.
The square drive recess provides superior bit engagement and reduced cam-out, making installation faster and more efficient.
Pre-drilling is recommended prior to installation.
Features
- Type 17 cutting point
- Low profile trim head design
- 6 rib self-countersinking head
- 304 stainless steel construction
- Square drive recess
- Excellent corrosion resistance
- Suitable for timber and composite decking
- Suitable for concealed decking systems
- Professional architectural finish
- Reduced head visibility
Suitable For
- Timber decking
- Composite decking
- Concealed decking systems
- Architectural decking projects
- Outdoor timber applications
- Conventional face fixing
Specifications
| Property | Specification |
|---|---|
| Product | Type 17 Trim Head Decking Screw |
| Material | 304 Stainless Steel |
| Point Type | Type 17 |
| Head Type | Trim Head – 6 Rib |
| Drive Type | Square Drive |
| Applications | Timber & Composite Decking |
| Installation | Pre-drilling Recommended |
Available Sizes
| Part Number | Size | Length | Drive Size | Head Diameter |
|---|---|---|---|---|
| T04WSTQ0810050 | #8-10 | 50mm | SQ1 | 6.05 – 6.45mm |
| T04WSTQ0909053 | #9-9 | 53mm | SQ2 | 6.05 – 6.48mm |
Why Choose Type 17 Trim Head Decking Screws?
Designed to deliver a superior architectural finish, the Type 17 Trim Head Decking Screw provides excellent corrosion resistance and minimal visual impact once installed. Its self-countersinking 6 rib trim head makes it ideal for premium decking applications where appearance is just as important as performance.
