Description

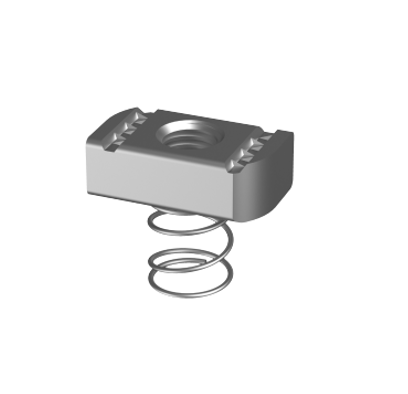

The Hot Dip Galvanised Strut Channel Nut with short spring is designed for use within strut channel systems where fast and convenient installation is required.
Manufactured from hot dip galvanised steel for excellent corrosion resistance, these channel nuts feature an integrated short spring that securely holds the nut in position within the strut channel during installation. Acting as a “third hand”, the spring significantly simplifies installation by allowing installers to position accessories and brackets without needing to manually retain the nut.
The serrated grooves on the top face provide enhanced grip within the channel, helping to minimise unwanted movement or rotation once installed.
Designed specifically for shallow channel sections, including 41 x 21mm strut channel, the Hot Dip Galvanised Short Spring Channel Nut provides a reliable fixing solution for mechanical, electrical and construction applications.
Features
- Hot Dip Galvanised finish
- Integrated short spring design
- Spring holds the nut securely in position during installation
- Serrated anti-rotation grooves
- Easy installation and precise placement
- Suitable for shallow strut channel sections
- Excellent corrosion resistance
- Heavy-duty construction
- Professional trade quality
Suitable For
- Strut channel systems
- Shallow strut channel sections
- Cable tray installations
- Pipe support systems
- Channel support brackets
- Mechanical services installations
- Electrical services installations
- Commercial construction projects
- Industrial applications
Applications
- Securing cable trays and ladders onto channel (strut)
- Using angle fittings to make right-angle connections between channel lengths
- Fixing channel supports to strut
- Shallow channel sections (41 x 21mm strut channel)
- General strut framing installations
Specifications
| Property | Specification |
|---|---|
| Product | Strut Channel Nut – Short Spring |
| Finish | Hot Dip Galvanised |
| Length (B) | 34.5mm |
| Spring Length (L) | 19mm |
| Spring Diameter (d2) | 18mm |
| Suitable Channels | Shallow Strut Channel Sections |
| Nut Type | Short Spring |
Available Sizes
| Part Number | Thread Size | Width (A) | Length (B) | Thickness (C) |
|---|---|---|---|---|
| NSMSGSSCM06 | M6 | 19mm | 34.5mm | 6.0mm |
| NSMSGSSCM08 | M8 | 19mm | 34.5mm | 8.0mm |
| NSMSGSSCM10 | M10 | 19mm | 34.5mm | 9.2mm |
| NSMSGSSCM12 | M12 | 19mm | 34.5mm | 12.0mm |
| NSMSGSSCM16 | M16 | 29mm | 34.5mm | 11.0mm |
Why Choose Hot Dip Galvanised Short Spring Strut Channel Nuts?
The integrated spring design makes installation quicker and easier by holding the nut securely within the channel while accessories are fitted. Combined with a corrosion-resistant hot dip galvanised finish and serrated anti-rotation grooves, these channel nuts are an excellent choice for professional strut channel installations.
