Description

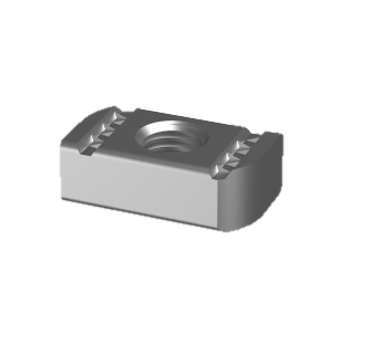

The 316 Stainless Steel Strut Channel Nut without spring is designed for use within strut channel systems where exceptional corrosion resistance and reliable performance are required.
Manufactured from marine-grade 316 stainless steel, these channel nuts are ideal for use in coastal, marine, food processing and corrosive environments. The serrated grooves on the top face provide enhanced grip within the strut channel, helping to prevent unwanted movement or rotation during installation.
The no spring design allows complete freedom to position and adjust the nut within the channel, making it ideal for applications where the nut does not need to be retained in position before fastening.
Suitable for all standard strut channel heights, the 316 Stainless Steel Strut Channel Nut offers a durable and versatile fixing solution for commercial, industrial and architectural installations.
Features
- Marine-grade 316 stainless steel construction
- Excellent corrosion resistance
- Suitable for all standard strut channel heights
- Serrated anti-rotation grooves
- No spring design for easy positioning
- Heavy-duty construction
- Ideal for harsh and coastal environments
- Professional trade quality
- Easy installation and adjustment
Suitable For
- Strut channel systems
- Cable tray installations
- Pipe support systems
- Channel support brackets
- Mechanical services installations
- Electrical services installations
- Marine environments
- Coastal applications
- Food processing facilities
- Industrial construction projects
Applications
- Securing cable trays and ladders onto channel (strut)
- Using angle fittings to make right-angle connections between strut lengths
- Fixing channel supports to strut
- Installing channel accessories and brackets
- Applications where the nut does not need to be retained in position
- General strut framing installations
Specifications
| Property | Specification |
|---|---|
| Product | Strut Channel Nut – No Spring |
| Material | 316 Stainless Steel |
| Width (A) | 19mm |
| Length (B) | 34.5mm |
| Suitable Channels | Standard Strut Channels |
| Nut Type | No Spring |
| Thread Sizes | M10 & M12 |
Available Sizes
| Part Number | Thread Size | Width | Length | Thickness |
|---|---|---|---|---|
| NS16PNSCM10 | M10 | 19mm | 34.5mm | 9.2mm |
| NS16PNSCM12 | M12 | 19mm | 34.5mm | 12.0mm |
Why Choose 316 Stainless Steel Strut Channel Nuts?
316 Stainless Steel Strut Channel Nuts provide superior corrosion resistance for strut channel installations exposed to harsh environmental conditions. Their marine-grade construction and serrated anti-rotation design make them ideal for professional installations where durability, reliability and long-term performance are essential.
