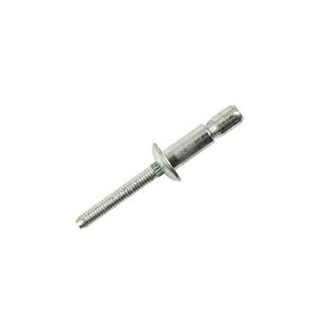

Huck Steel MagnaLok Rivet Dome Head (MGLP-R)

$40.00$245.00

Clear

Description

The 360º solid-circle lock. It’s Arconic Fastening Systems’ answer to loosening and vibration
challenges. And it’s the reason Magna-Lok® is the world’s most reliable, most consistent blind
fastening solution available. The unique locking design creates an internal lock during installation
that virtually eliminates pin pushout by mechanically locking the pin to the sleeve. So Magna-Lok
fasteners lock flush into place reliably. Permanently.

In lap shear fatigue tests, steel Magna-Lok fasteners outlasted the nearest competitor nearly 20 to 1.
Ours lasted 2 million cycles, while theirs lasted only 100,000. In addition, this strength extends to the
solid-circle lock design. The expanding sleeve creates a tough, long-lasting joint with a tight, weather resistant
seal. This shield blocks out water and salt, further ensuring the fastener’s long, reliable life.



PARTPARTDESCRIPTIONSIZEGRIP
MGLP-R6-4HRDS-0604HUCK STEEL MAGNALOK RIVET4.8MM x 17MM1.57MM – 6.86MM
MGLP-R6-EHRDS-0610EHUCK STEEL MAGNALOK RIVET4.8MM X 24MM1.57MM-11.1MM
MGLP-R8-6HRDS-0806HUCK STEEL MAGNALOK RIVET6.4MM X 24MM2.03MM-9.53MM
MGLP-R8-EHRDS-0810EHUCK STEEL MAGNALOK RIVET6.4MM X 35MM2.03MM-15.88MM
MGLP-R8-E126HRDS-0810E126HUCK STEEL MAGNALOK RIVET6.4MM X 40MM6.22MM-20.0MM
MGLP-R8-18HRDS-0818HUCK STEEL MAGNALOK RIVET6.4MM X 43MM21.08MM-28.75MM
MGLP-R12-12HRDS-1212HUCK STEEL MAGNALOK RIVET9.5MM X 42MM3.05MM-14.22MM
MGLP-R12-18HRDS-1218HUCK STEEL MAGNALOK RIVET9.5MM X 53MM15.8MM-28.57MM

Additional Information

CODE: DIAMETER x LENGTH

MGLP-R6-4: 4.8mm (3/16) x 17mm, MGLP-R6-E: 4.8mm (3/16) x 24mm, MGLP-R8-6: 6.4mm (1/4) x 24mm, MGLP-R8-E: 6.4mm (1/4) x 35mm, MGLP-R8-E126: 6.4mm (1/4) x 40mm, MGLP-R8-18: 6.4mm (1/4) x 43mm, MGLP-R12-12: 9.5mm (3/8) x 42mm, MGLP-R12-18: 9.5mm (3/8) x 53mm
