Description

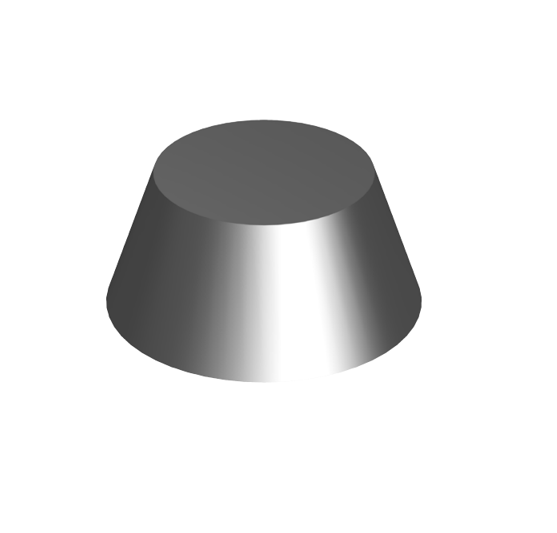

The Mechanical Galvanised Secure Ring provides a permanent tamper-proof fastening solution for hex head self drilling screws used in commercial, industrial and public infrastructure applications.
Manufactured from mild steel with a mechanical galvanised finish, these secure rings are installed over the hex head of compatible self drilling screws and deformed using the Secure Ring Installation Tool. Once installed, the secure ring completely covers the hex drive, preventing conventional tools from removing the fastener.
Designed for use with AS3566 self drilling screws, the secure ring system provides a simple yet highly effective method of deterring tampering and unauthorised removal. The mechanical galvanised finish offers excellent corrosion resistance for outdoor and exposed environments.
For installation, simply place the secure ring over the screw head and use the IRSMSZTS-037 installation tool with a mallet to permanently deform the ring into position.
Features
- Provides permanent tamper-proof security
- Designed for AS3566 hex head self drilling screws
- Mechanical galvanised finish for corrosion resistance
- Prevents unauthorised fastener removal
- Easy installation using the dedicated installation tool
- Suitable for commercial and industrial applications
- Durable mild steel construction
- Covers and deforms over the screw head for permanent installation
Suitable For
- AS3566 self drilling screws
- Security installations
- Public infrastructure
- Commercial construction
- Industrial applications
- Roofing and cladding applications
- Utilities and telecommunications installations
- Anti-vandal applications
Applications
- Securing hex head self drilling screws
- Preventing tampering of installed fasteners
- Public access infrastructure
- Industrial and commercial installations
- Security-critical fastening applications
Installation Instructions
- Install the self drilling screw as per the manufacturer’s instructions.
- Place the secure ring over the hex head of the screw.
- Use the IRSMSZTS-037 Secure Ring Installation Tool.
- Position the installation tool over the secure ring.
- Strike the installation tool with a mallet to deform the secure ring.
- Continue striking until the ring fully covers the hex head and sits flush with the surface.
Specifications
| Property | Specification |
|---|---|
| Product | Secure Ring |
| Material | Mild Steel |
| Finish | Mechanical Galvanised |
| Screw Compatibility | AS3566 Self Drilling Screws |
| Installation Method | Mallet & Installation Tool |
| Security Type | Permanent Tamper-Proof |
Available Sizes
| Part Number | Screw Size Compatibility | Driver Size |
|---|---|---|
| IRSMSGS031 | #10 & #12 | 5/16″ |
| IRSMSGS037 | #14 | 3/8″ |
Recommended Accessory
| Part Number | Description |
|---|---|
| IRSMSZTS-037 | Secure Ring Installation Tool (1/4″, 5/16″ & 3/8″ AF) |
Why Choose Mechanical Galvanised Secure Rings?
Mechanical Galvanised Secure Rings provide an effective permanent anti-tamper fastening solution for self drilling screw installations. Once installed, they prevent conventional tools from accessing the screw head, making them ideal for public infrastructure and security-sensitive applications.
