Description

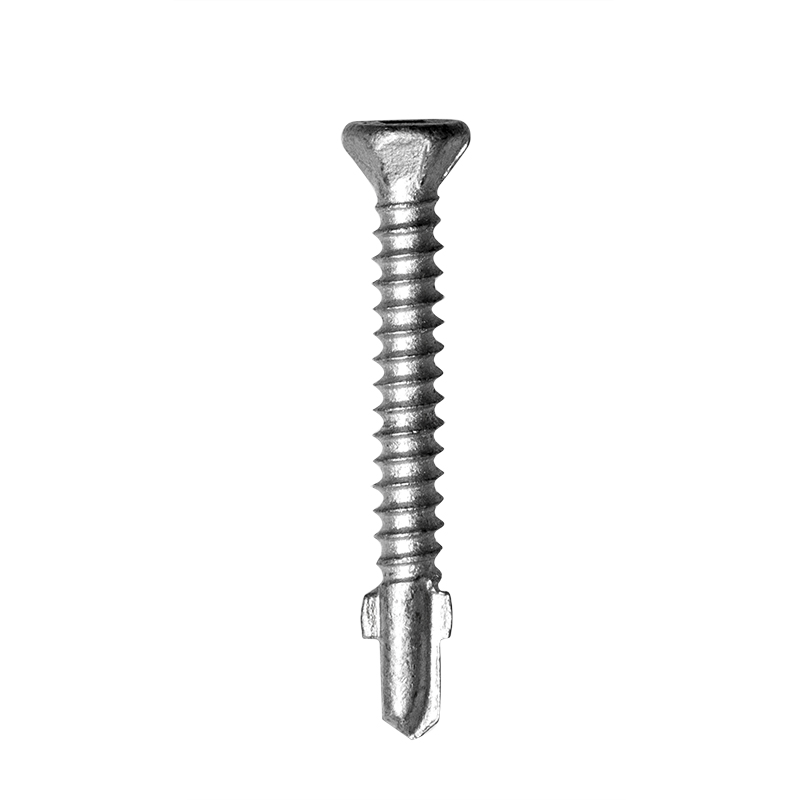

Quik Drive® CBSDG Collated Screws – Cement Sheet & Timber to Steel
Simpson Strong-Tie Quik Drive® CBSDG screws are collated, winged self-drilling screws
designed specifically for fixing cement sheeting, flooring underlay and timber-to-steel applications.
They provide fast, reliable installation with a clean countersunk finish.
Key Features
- Winged drill point penetrates 0.8–2.4 mm steel (CBSDG) or 1.2–3.0 mm steel (CBSDGL).
- Ribbed flat head with nibs ensures easy countersinking without sheet “ride.”
- Class 3 mechanically galvanised for superior corrosion resistance.
- #2 undersize square drive for secure engagement and reduced cam-out.

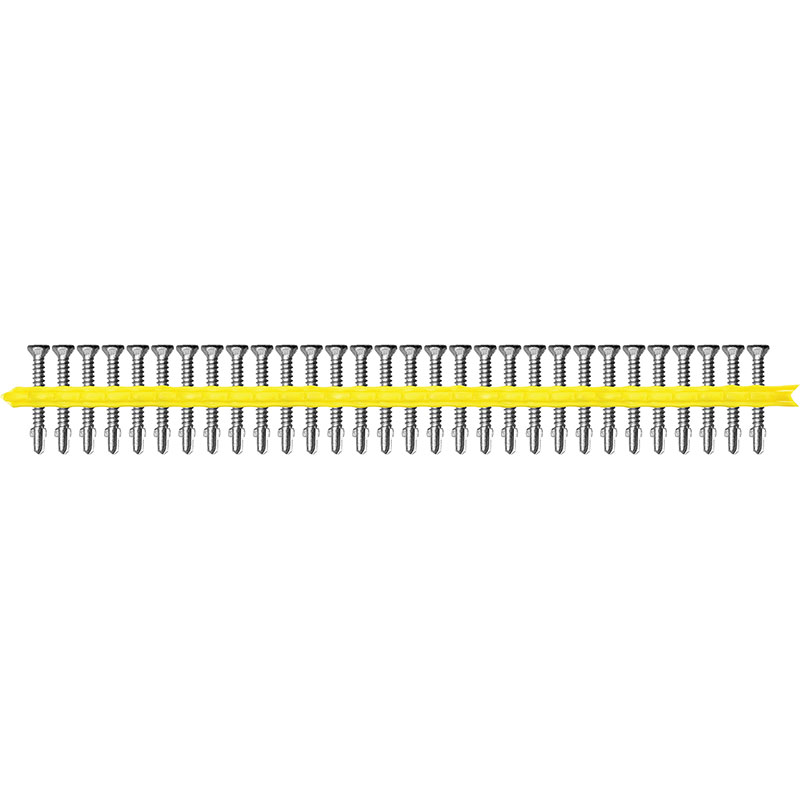

- Supplied collated for use with the Quik Drive® system for high-speed installation.
Applications
- Cement sheeting and underlay to steel framing
- Timber-to-steel connections
- Flooring and cladding installations
Board Thickness Guide
- 25 mm screw → up to 5 mm board
- 32 mm screw → up to 12 mm board
- 42 mm screw → up to 20 mm board
- 55 mm screw → up to 30 mm board
- 75 mm screw → up to 50 mm board
Specifications
| Model | Size | Thread | Point | Finish | Box Qty | Drive | Replacement Bit |
|---|---|---|---|---|---|---|---|
| CBSDG1SA | 8G × 25 mm | Fine, 18 TPI | Drill Point | Class 3 Mech-Galv | 2500 | #2 Square (undersize) | BIT2SU-RC10 |
| CBSDG114SA | 8G × 32 mm | Fine, 18 TPI | Drill Point | Class 3 Mech-Galv | — | #2 Square (undersize) | BIT2SU-RC10 |
| CBSDG158SA | 8G × 42 mm | Fine, 18 TPI | Drill Point | Class 3 Mech-Galv | 1500 | #2 Square (undersize) | BIT2SU-RC10 |
| CBSDGL158SA | 10G × 42 mm | Fine, 18 TPI | Drill Point | Class 3 Mech-Galv | — | #2 Square (undersize) | BIT2SU-RC10 |
| CBSDGL214SA | 10G × 55 mm | Fine, 18 TPI | Drill Point | Class 3 Mech-Galv | 1000 | #2 Square (undersize) | BIT2SU-RC10 |
| CBSDGL3SA | 10G × 75 mm | Fine, 18 TPI | Drill Point | Class 3 Mech-Galv | — | #2 Square (undersize) | BIT2SU-RC10 |
