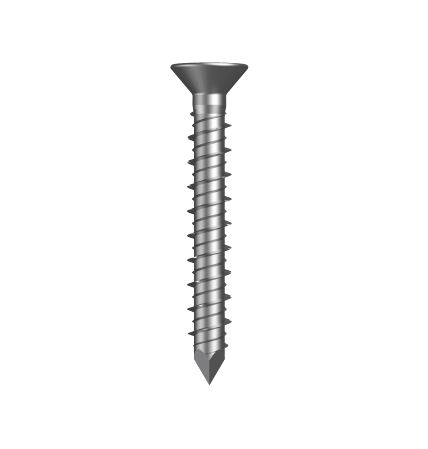

Masonry Anchor Screw TX-CON – Countersunk Phillips, R1000hrs Coating
Our TX-CON® Masonry Anchor Screws with countersunk Phillips heads are specially engineered for medium-duty fastening into concrete, brick, block, or timber. Featuring an R1000 protective coating (1000-hour salt spray rating), they deliver reliable corrosion resistance and a clean silver appearance.
📄 Download Full Technical Data Sheet (PDF)
Features
- R1000 Hours Protective Coating – silver-grey finish with ≥15 µm thickness for corrosion resistance.
- Countersunk Phillips Drive – blends flush with fixtures and offers stable screw driving.
- No Plug Required – taps into drilled holes for quick, efficient installation.
- Material: HEC Carbon Steel – robust and durable for reliable load support.
Applications
- Electrical conduit saddles
- Pipe saddles and lighting fixtures
- Signage mounts
- Downpipes, guttering, brackets, handrails
- Base materials: concrete, aerated concrete, brick, hollow concrete block, and timber
Sizes & Specifications
| Part Number | Size | Drive | Pack Qty |
|---|---|---|---|
| MTXTRCP50032 | 5.0 × 32 mm | #2 Phillips | 100 |
| MTXTRCP50045 | 5.0 × 45 mm | #2 Phillips | 100 |
| MTXTRCP50058 | 5.0 × 58 mm | #2 Phillips | 100 |
| MTXTRCP50070 | 5.0 × 70 mm | #2 Phillips | 100 |
| MTXTRCP65045 | 6.5 × 45 mm | #3 Phillips | 100 |
| MTXTRCP65058 | 6.5 × 58 mm | #3 Phillips | 100 |
| MTXTRCP65070 | 6.5 × 70 mm | #3 Phillips | 100 |
| MTXTRCP65083 | 6.5 × 83 mm | #3 Phillips | 100 |
| MTXTRCP65100 | 6.5 × 100 mm | #3 Phillips | 100 |
Load Capacities (Concrete f’c = 32 MPa)
- 5.0 × 32 mm: Tension 0.8 kN, Shear 1.1 kN
- 5.0 × 45 mm: Tension 1.0 kN, Shear 1.2 kN
- 5.0 × 58 mm: Tension 1.6 kN, Shear 1.3 kN
- 5.0 × 70 mm: Tension 2.0 kN, Shear 1.3 kN
- 6.5 × 45 mm: Tension 1.9 kN, Shear 2.7 kN
- 6.5 × 58 mm: Tension 2.8 kN, Shear 2.7 kN
- 6.5 × 70 mm: Tension 4.2 kN, Shear 2.8 kN
- 6.5 × 83 mm & 6.5 × 100 mm: Tension 5.6 kN, Shear 2.8 kN
Installation Notes
- Drill hole minimum as per datasheet; embed depth required for safe load values.
- Ensure fixture is snug against base material; do not overtighten.
- Suitable for hollow or solid base materials: concrete, block, brick, and timber.
Order your TX-CON Masonry Anchor Screws today for fast anchoring into concrete, block, brick, or timber with enhanced corrosion resistance and high load capacity.
