Description

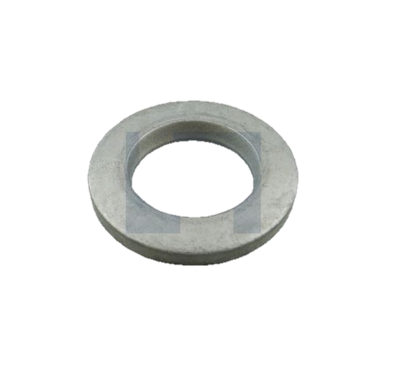

CHNORR® high stress load washers (HS type) are precision-engineered spring steel washers designed for high-load structural bolting applications, particularly where installation space is limited.
These washers feature a slightly curved profile, providing a progressive spring characteristic that improves load retention and helps maintain clamping force under dynamic conditions.
Despite their compact outer diameter, HS washers are capable of achieving similar performance to standard load washers, making them ideal for applications where space constraints exist.
Finished with Geomet 321B coating, they provide excellent corrosion resistance for demanding environments.
Key Features
- SCHNORR® HS (high stress) washer design
- Spring steel construction for high load capacity
- Curved profile for progressive spring action
- Maintains preload and reduces loosening
- Compact design for restricted space applications
- Geomet 321B coating for corrosion resistance
Applications
- Structural steel connections
- High vibration environments
- Heavy machinery and equipment
- Infrastructure and civil construction
- Applications with limited installation space
Available Sizes
M8 | M10 | M12 | M16 | M20
Product Table
| Part Number | QFind | Size | Dimensions |
|---|---|---|---|
| WOHTLEM08 | S401085 | M8 | 17 x 2.0 |
| WOHTLEM10 | S401086 | M10 | 21 x 2.5 |
| WOHTLEM12 | S401023 | M12 | 24 x 3.0 |
| WOHTLEM16 | S401024 | M16 | 30 x 4.0 |
| WOHTLEM20 | S401087 | M20 | 36 x 5.0 |
Technical Information
- Manufactured in accordance with DIN 267 Part 26
- Spring steel material (DIN EN 10132-4 equivalent)
- Designed to provide high residual clamp load after settling
- Contact force values tested to DIN standards
- Suitable alternative where DIN 6796 washers cannot be used due to space constraints
Specifications
| Property | Value |
|---|---|
| Product Type | High Stress Load Washer |
| Type | SCHNORR® HS |
| Material | Spring Steel |
| Coating | Geomet 321B |
| Standard | DIN 267 Part 26 |
| Function | Load Retention / Anti-Loosening |
Why Use HS Load Washers
- Maintains bolt preload under vibration
- Reduces risk of loosening
- Suitable for compact assemblies
- High performance in structural applications
