Description

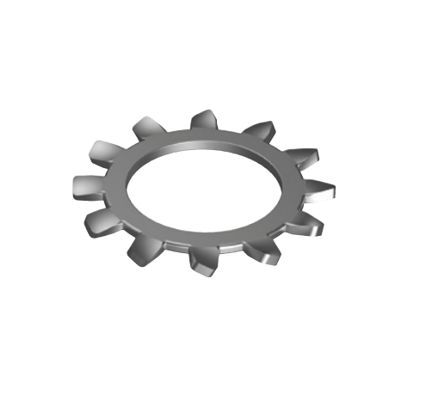

304 Stainless Steel External Tooth Lock Washers are designed to provide a locking action between the washer and the mating surface in fastening applications. Manufactured to DIN 6797 Type A, the external tooth design features serrations around the outside diameter of the washer, making them suitable for use with compatible metric fasteners.
Manufactured from 304 stainless steel, these lock washers offer excellent corrosion resistance and are suitable for a wide range of general engineering, industrial and maintenance applications.
Available in metric sizes from M2.5 through to M16, DIN 6797 Type A External Tooth Lock Washers are commonly used where a locking washer is required while providing increased surface contact through the external tooth design.
Features
- Manufactured to DIN 6797 Type A
- External tooth lock washer design
- Manufactured from 304 stainless steel
- Excellent corrosion resistance
- Metric sizes available
- Suitable for use with compatible metric fasteners
- Professional trade quality
Suitable for:
- General fastening applications
- Metric fastener assemblies
- Engineering applications
- Manufacturing applications
- Maintenance and repair work
Specifications
| Property | Specification |
|---|---|
| Product | External Tooth Lock Washer |
| Standard | DIN 6797 Type A |
| Material | 304 Stainless Steel |
| Washer Type | External Tooth |
| Size Range | M2.5 to M16 |
| Thread Type | Metric |
Available Sizes
| Part Number | Size | Outside Diameter | Thickness |
|---|---|---|---|
| WL04TEM025 | M2.5 | 5.5mm | 0.4mm |
| WL04TEM03 | M3 | 6.0mm | 0.4mm |
| WL04TEM04 | M4 | 8.0mm | 0.5mm |
| WL04TEM05 | M5 | 10.0mm | 0.6mm |
| WL04TEM06 | M6 | 11.0mm | 0.7mm |
| WL04TEM08 | M8 | 15.0mm | 0.8mm |
| WL04TEM10 | M10 | 18.0mm | 0.9mm |
| WL04TEM12 | M12 | 20.5mm | 1.0mm |
| WL04TEM16 | M16 | 26.0mm | 1.2mm |
Why Choose 304 Stainless Steel External Tooth Lock Washers?
Manufactured to DIN 6797 Type A, these External Tooth Lock Washers provide an effective locking washer solution for metric fastening applications. The 304 stainless steel construction offers excellent corrosion resistance while the external tooth design provides reliable locking performance across a wide range of engineering and industrial applications.
