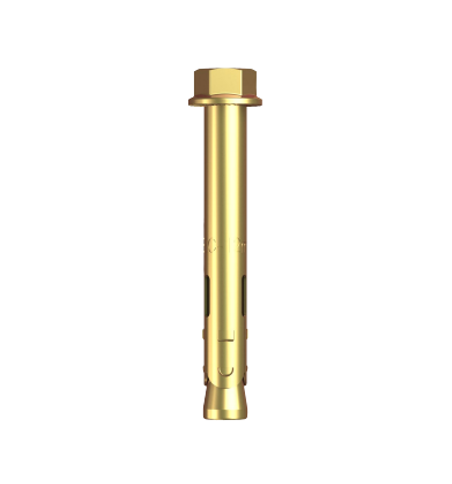

Tygabolt Sleeve Anchor Hex Head Zinc Yellow

From $12.10

Clear

Description

[Product Information]

The Tygabolt® is a fully-assembled single unit wedge-type anchors used in solid concrete applications. Fixing is achieved by controlled torquing of the nut which draws the cone section up in the sleeve, thereby expanding it outward and forcing the Tygabolt® against the sidewall of the pre-drilled hole.

Features

• Suitable for light to medium duty loads
• Quick and easy to install
• Immediate loading is possible
• Expansion claws that prevent rotation during tightening
• Cold formed cone for efficient expansion of the sleeve

Applications
• Hand rail fastening
• Form-work support fastening
• Mechanical, electrical and pipe bracket fastening





PartDescriptionProductFinishSizeLen
MTBMSYM0650025MTB129ZYP TYGABOLT: 6.5MM X 25TYGABOLT (SLEEVE ANCHOR)6.5mm25
MTBMSYM0650035MTB130ZYP TYGABOLT: 6.5MM X 35TYGABOLT (SLEEVE ANCHOR)6.5mm35
MTBMSYM0650055MTB131ZYP TYGABOLT: 6.5MM X 55TYGABOLT (SLEEVE ANCHOR)6.5mm55
MTBMSYM080040MTB132ZYP TYGABOLT: 8MM X 40TYGABOLT (SLEEVE ANCHOR)8mm40
MTBMSYM080060MTB133ZYP TYGABOLT: 8MM X 60TYGABOLT (SLEEVE ANCHOR)8mm60
MTBMSYM080080MTB134ZYP TYGABOLT: 8MM X 80TYGABOLT (SLEEVE ANCHOR)8mm80
MTBMSYM100040MTB135ZYP TYGABOLT: 10MM X 40TYGABOLT (SLEEVE ANCHOR)10mm40
MTBMSYM100050MTB136ZYP TYGABOLT: 10MM X 50TYGABOLT (SLEEVE ANCHOR)10mm50
MTBMSYM100060MTB137ZYP TYGABOLT: 10MM X 60TYGABOLT (SLEEVE ANCHOR)10mm60
MTBMSYM100075MTB138ZYP TYGABOLT: 10MM X 75TYGABOLT (SLEEVE ANCHOR)10mm75
MTBMSYM100100MTB139ZYP TYGABOLT: 10MM X 100TYGABOLT (SLEEVE ANCHOR)10mm100
MTBMSYM100120MTB140ZYP TYGABOLT: 10MM X 120TYGABOLT (SLEEVE ANCHOR)10mm120
MTBMSYM120060MTB141ZYP TYGABOLT: 12MM X 60TYGABOLT (SLEEVE ANCHOR)12mm60
MTBMSYM120080MTB142ZYP TYGABOLT: 12MM X 80TYGABOLT (SLEEVE ANCHOR)12mm80
MTBMSYM120100MTB143ZYP TYGABOLT: 12MM X 100TYGABOLT (SLEEVE ANCHOR)12mm100
MTBMSYM120120MTB144ZYP TYGABOLT: 12MM X 120TYGABOLT (SLEEVE ANCHOR)12mm120
MTBMSYM160065MTB145ZYP TYGABOLT: 16MM X 65TYGABOLT (SLEEVE ANCHOR)16mm65
MTBMSYM160105MTB146ZYP TYGABOLT: 16MM X 105TYGABOLT (SLEEVE ANCHOR)16mm105
MTBMSYM160145MTB147ZYP TYGABOLT: 16MM X 145TYGABOLT (SLEEVE ANCHOR)16mm145
MTBMSYM200075MTB148ZYP TYGABOLT: 20MM X 75TYGABOLT (SLEEVE ANCHOR)20mm75
MTBMSYM200100MTB149ZYP TYGABOLT: 20MM X 100TYGABOLT (SLEEVE ANCHOR)20mm100
MTBMSYM200160MTB150ZYP TYGABOLT: 20MM X 160TYGABOLT (SLEEVE ANCHOR)20mm160



Additional Information

Diameter x Length:

6.5mm x 25mm, 6.5mm x 35mm, 6.5mm x 55mm, 8mm x 40mm, 8mm x 40mm, 8mm x 60mm, 8mm x 80mm, 10mm x 40mm, 10mm x 50mm, 10mm x 60mm, 10mm x 75mm, 10mm x 100mm, 10mm x 120mm, 12mm x 60mm, 12mm x 80mm, 12mm x 100mm, 12mm x 120mm, 16mm x 65mm, 16mm x 105mm, 16mm x 145mm, 20mm x 75mm, 20mm x 100mm, 20mm x 160mm
