Description

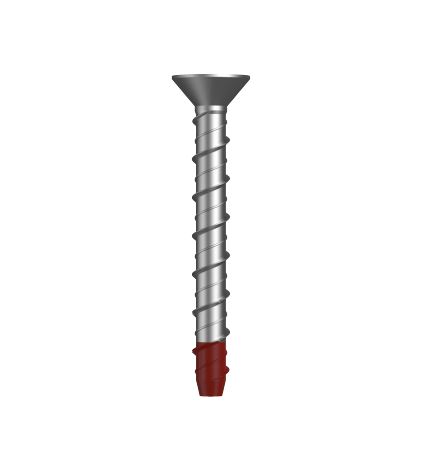

Countersunk Head Masonry Screw Anchor XBolt Mechanical Galvanised
Description
MGAL XBOLT IHEX05 CSK
Finish
MECHANICAL GALVANISED
Product
XBOLT – COUNTERSUNK HEAD
XBolt® is a single unit screw type anchor that can be used in solid concrete applications. Fixing is achieved by screwing the anchor into a drilled hole in concrete. As it is screwed in, the anchor taps the hole, thus enabling it to produce a mechanical interlock with the concrete.
Applications
– Hand rail fastening
– Form-work support fastening
– Mechanical, electrical and pipe bracket fastening
– General flooring and decking
– Swimming pool fences
Features
– Rapid simple installation
– Close edge distance install
– Immediate loading of fixture
– Shallow embedment depth
– Fully removable
– Countersunk head for flush finish
[CLICK HERE FOR PRODUCT DATA SHEET]
| Part | Description | Product | Finish | Size | Length |
|---|---|---|---|---|---|
| MXKMSGM060050 | MGAL XBOLT IHEX05 CSK: M6 X 50 | XBOLT – COUNTERSUNK HEAD | MECHANICAL GALVANISED | M6 | 50 |
| MXKMSGM060075 | MGAL XBOLT IHEX05 CSK: M6 X 75 | XBOLT – COUNTERSUNK HEAD | MECHANICAL GALVANISED | M6 | 75 |
| MXKMSGM080050 | MGAL XBOLT IHEX06 CSK: M8 X 50 | XBOLT – COUNTERSUNK HEAD | MECHANICAL GALVANISED | M8 | 50 |
| MXKMSGM080075 | MGAL XBOLT IHEX06 CSK: M8 X 75 | XBOLT – COUNTERSUNK HEAD | MECHANICAL GALVANISED | M8 | 75 |
| MXKMSGM080100 | MGAL XBOLT IHEX06 CSK: M8 X100 | XBOLT – COUNTERSUNK HEAD | MECHANICAL GALVANISED | M8 | 100 |
| MXKMSGM100060 | MGAL XBOLT IHEX08 CSK:M10 X 60 | XBOLT – COUNTERSUNK HEAD | MECHANICAL GALVANISED | M10 | 60 |
| MXKMSGM100075 | MGAL XBOLT IHEX08 CSK:M10 X 75 | XBOLT – COUNTERSUNK HEAD | MECHANICAL GALVANISED | M10 | 75 |
| MXKMSGM100100 | MGAL XBOLT IHEX08 CSK:M10 X100 | XBOLT – COUNTERSUNK HEAD | MECHANICAL GALVANISED | M10 | 100 |
| MXKMSGM120075 | MGAL XBOLT IHEX10 CSK:M12 X 75 | XBOLT – COUNTERSUNK HEAD | MECHANICAL GALVANISED | M12 | 75 |
| MXKMSGM120100 | MGAL XBOLT IHEX10 CSK:M12 X100 | XBOLT – COUNTERSUNK HEAD | MECHANICAL GALVANISED | M12 | 100 |
| MXKMSGM120150 | MGAL XBOLT IHEX10 CSK:M12 X150 | XBOLT – COUNTERSUNK HEAD | MECHANICAL GALVANISED | M12 | 150 |
| MXKMSGM120200 | MGAL XBOLT IHEX10 CSK:M12X200 | XBOLT – COUNTERSUNK HEAD | MECHANICAL GALVANISED | M12 | 200 |
