Metal Self Drilling Button Head Phillips Zinc Yellow

From $16.50

Clear

Description

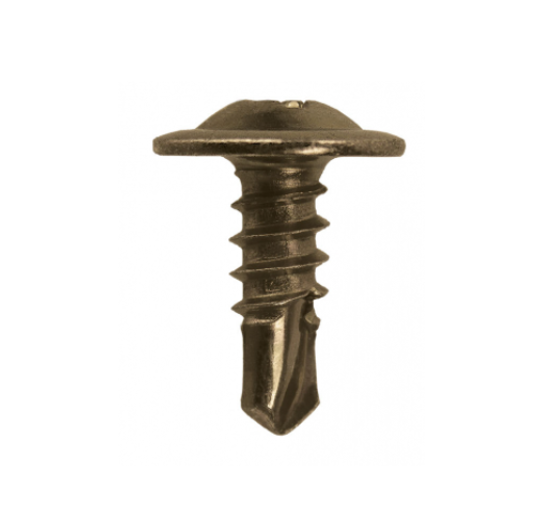

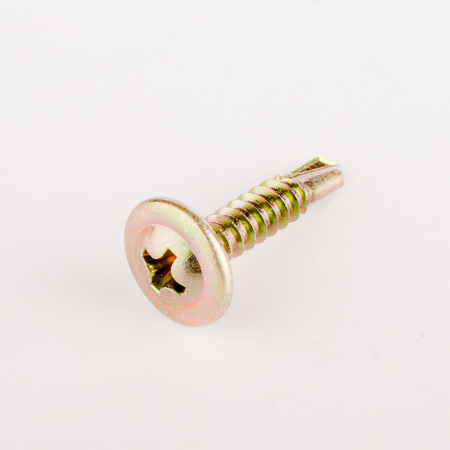

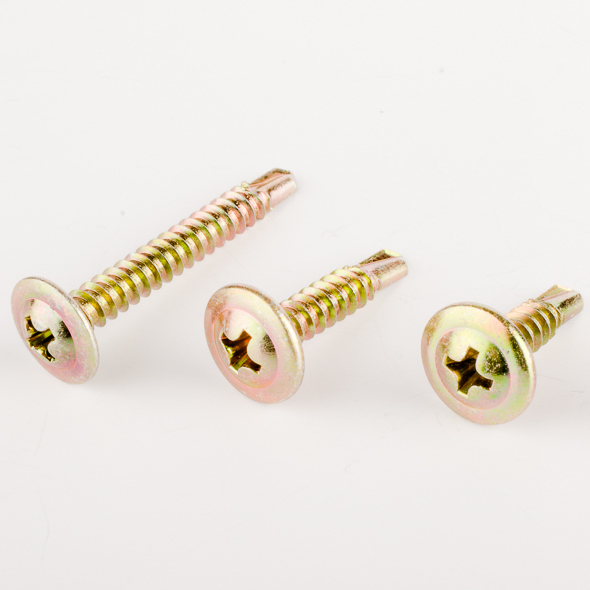

A coarse thread self drilling button head designed for a range of applications such as fixing light sheeting and cladding that require a flat head underside to allow for greater bearing on the surface material. The fine thread allows for a slightly faster install, whilst the self drilling point (aka tek point) eliminates the need for pre-drilling (please see screw self drilling capacities). The No. 2 Philips drive accompanied by the button head provides a capable screw with an aesthetic finish. Available in zinc yellow and class 3 galvanised finish, making this screw perfect for internal and external applications.





PartQFindDescriptionProductSizeLength
T9PMYAP0818012Q430ZYP MET BWAF PH: 8-18X 12METAL SDS BUTTON WAFER (ZINC YELLOW PASSIVATE)#8-1812
T9PMYAP0818016Q432ZYP MET BWAF PH: 8-18X 16METAL SDS BUTTON WAFER (ZINC YELLOW PASSIVATE)#8-1816
T9PMYAP0818020Q434ZYP MET BWAF PH: 8-18X 20METAL SDS BUTTON WAFER (ZINC YELLOW PASSIVATE)#8-1820
T9PMYAP0818025Q436ZYP MET BWAF PH: 8-18X 25METAL SDS BUTTON WAFER (ZINC YELLOW PASSIVATE)#8-1825
T9PMYAP0818032Q438ZYP MET BWAF PH: 8-18X 32METAL SDS BUTTON WAFER (ZINC YELLOW PASSIVATE)#8-1832

Additional Information

Size: GAUGE x LENGTH

8 x 12mm, 8 x 16mm, 8 x 20mm, 8 x 25mm, 8 x 32mm
