Description

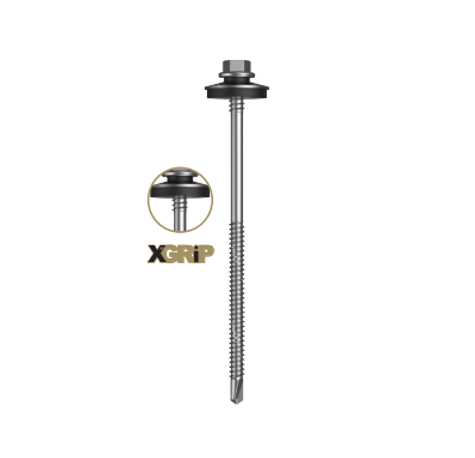

The BDX Metal Cyclone Multiseal Roofing Screw has been developed for securing metal roofing sheets to steel framing in demanding roofing applications. Featuring a 14 gauge hex head design and high-performance drill point, it delivers fast installation into steel while maintaining exceptional pull-out performance.
Manufactured from C1022 hardened steel and protected by the X9 ProteXion coating system, the screw is suitable for ISO 9223 Category 4 environments. Every screw is assembled with a 25mm OD aluminium bonded sealing washer to provide superior weather sealing and suit all major roofing profiles.
Ideal for commercial, industrial and residential roofing projects where durability and corrosion resistance are essential.
Features
- Premium C1022 hardened steel construction
- X9 ProteXion coating suitable for ISO 9223 Category 4 environments
- 14 Gauge hex head design
- Self-drilling point for steel framing
- Supplied with 25mm aluminium bonded sealing washer
- Suitable for all metal roofing profiles
- Excellent pull-out performance
- Designed for high wind roofing applications
Suitable for:
- Metal roofing to steel purlins
- Commercial roofing
- Industrial roofing
- Residential roofing
- Roofing with insulation
- High wind areas
- Sheds
- Wall cladding applications
Specifications
| Property | Specification |
|---|---|
| Brand | BDX |
| Product | Metal Cyclone Multiseal |
| Material | C1022 Hardened Steel |
| Finish | X9 ProteXion Coating |
| Gauge | 14G |
| Thread Pitch | 14 TPI |
| Head Type | Hex Head |
| Drive Size | 3/8″ AF Hex |
| Washer OD | 25mm |
| Washer ID | 6.5mm |
| Washer Thickness | 11.5mm |
Available Sizes
| Part Number | QFind | Length | Thread Length | Shank Length | Drill Point | Head Ø |
| T9PM9YG1414125 | QC06 | 125mm | 60mm | 43mm | 10mm | 14mm |
| T9PM9YG1414150 | QC07 | 150mm | 100mm | 28mm | 10mm | 14mm |
| T9PM9YG1414175 | QC08 | 175mm | 100mm | 53mm | 10mm | 14mm |
| T9PM9YG1414205 | QC09 | 205mm | 100mm | 83mm | 10mm | 14mm |
| T9PM9YG1414230 | QC10 | 230mm | 100mm | 108mm | 10mm | 14mm |
Performance
Pull-Out Values
| Steel Purlin | Steel Thickness | Characteristic Load | Working Load |
| G2 | 0.7mm | 1,000N | 400N |
| G2 | 1.1mm | 1,850N | 750N |
| G2 | 1.5mm | 4,200N | 1,700N |
| G450 | 1.9mm | 5,650N | 2,250N |
| G450 | 2.4mm | 8,300N | 3,300N |
| G2 | 2.9mm | 7,500N | 3,000N |
Mechanical Properties
| Property | Value |
| Torsional Strength | 16.9 Nm |
| Mean Tensile Strength | 21,800 N |
| Mean Shear Strength | 13,100 N |
| Characteristic Tensile Strength | 16,150 N |
| Characteristic Shear Strength | 9,700 N |
Installation
- Set the screw gun to 2,200–3,000 RPM.
- Fit a 3/8″ hex drive bit to the screw gun.
- Apply firm, consistent pressure while drilling.
- Tighten until the washer seals correctly without over-tightening.
Note: Installation using impact drivers is not recommended.
Why Choose BDX Metal Cyclone Multiseal?
BDX Metal Cyclone Multiseal screws are engineered specifically for roofing applications requiring superior corrosion resistance, dependable weather sealing and high pull-out performance. The X9 ProteXion coating, hardened steel construction and oversized aluminium bonded washer provide long-term durability in demanding roofing environments, while the range of available lengths accommodates varying insulation thicknesses and roofing assemblies.
