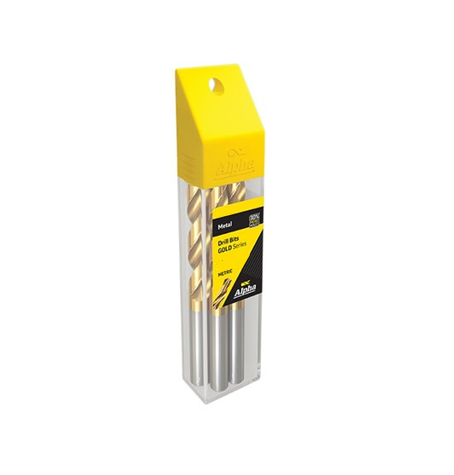

Alpha Gold Series Metric Jobber Drill Bits TiN Coated

Alpha Gold Series Metric Jobber Drill Bits TiN Coated

From $11.50

Alpha Gold Series metric jobber drill bits manufactured from fully ground M2 HSS with a Titanium Nitride coating and 135° split point for faster cutting, reduced wandering and extended drill life.

M2 HSS
TiN Coated
135° Split Point
0.3–13.5mm
SKU: 9LM Category: Tags: , , , , , , , , , , Brand:

Description

Alpha Gold Series Metric Jobber Drill Bits

The Alpha Gold Series Metric Jobber Drill Bits are manufactured
from fully ground M2 high-speed steel (HSS) and feature a
Titanium Nitride (TiN) coating and
135° split point.

The fully ground M2 HSS construction is designed to increase drill life,
while the Titanium Nitride coating reduces heat and increases lubricity
for extended life. The 135° split point is designed to cut faster and
reduce wandering.

Alpha states that its Gold Series drills produce
30% more holes than other leading brands of jobber drills,
based on the testing referenced in its Gold Series literature.

Key Features

  • Fully ground M2 HSS construction
  • Designed for increased drill life
  • Titanium Nitride (TiN) coating
  • TiN coating helps reduce heat
  • Increased lubricity for extended tool life
  • 135° split point
  • Designed for faster cutting
  • Split point helps reduce wandering
  • Metric sizing
  • Alpha Gold Series
  • Extensive range of individual metric sizes

Technical Specifications

SpecificationDetails
BrandAlpha
SeriesGold Series
Product TypeJobber Drill Bit
MeasurementMetric
MaterialM2 HSS
ManufactureFully Ground
CoatingTitanium Nitride (TiN)
PointSplit Point
Point Angle135°

Available Sizes & Part Numbers

Alpha Gold Series Metric Jobber Drill Bits are available in a wide range
of metric sizes. Use the table below to match the required drill diameter
with the corresponding Alpha part number.

Part NumberDrill SizeDescription
9LM0030.3mmGold Series Metric Jobber Drill – 0.3mm
9LM0040.4mmGold Series Metric Jobber Drill – 0.4mm
9LM0050.5mmGold Series Metric Jobber Drill – 0.5mm
9LM00580.58mmGold Series Metric Jobber Drill – 0.58mm
9LM0060.6mmGold Series Metric Jobber Drill – 0.6mm
9LM0070.7mmGold Series Metric Jobber Drill – 0.7mm
9LM0080.8mmGold Series Metric Jobber Drill – 0.8mm
9LM0090.9mmGold Series Metric Jobber Drill – 0.9mm
9LM0101.0mmGold Series Metric Jobber Drill – 1.0mm
9LM0111.1mmGold Series Metric Jobber Drill – 1.1mm
9LM0121.2mmGold Series Metric Jobber Drill – 1.2mm
9LM0131.3mmGold Series Metric Jobber Drill – 1.3mm
9LM0151.5mmGold Series Metric Jobber Drill – 1.5mm
9LM0161.6mmGold Series Metric Jobber Drill – 1.6mm
9LM0171.7mmGold Series Metric Jobber Drill – 1.7mm
9LM0181.8mmGold Series Metric Jobber Drill – 1.8mm
9LM0191.9mmGold Series Metric Jobber Drill – 1.9mm
9LM0202.0mmGold Series Metric Jobber Drill – 2.0mm
9LM0212.1mmGold Series Metric Jobber Drill – 2.1mm
9LM0222.2mmGold Series Metric Jobber Drill – 2.2mm
9LM02252.25mmGold Series Metric Jobber Drill – 2.25mm
9LM0232.3mmGold Series Metric Jobber Drill – 2.3mm
9LM0242.4mmGold Series Metric Jobber Drill – 2.4mm
9LM0252.5mmGold Series Metric Jobber Drill – 2.5mm
9LM0262.6mmGold Series Metric Jobber Drill – 2.6mm
9LM0272.7mmGold Series Metric Jobber Drill – 2.7mm
9LM02752.75mmGold Series Metric Jobber Drill – 2.75mm
9LM0282.8mmGold Series Metric Jobber Drill – 2.8mm
9LM0292.9mmGold Series Metric Jobber Drill – 2.9mm
9LM0303.0mmGold Series Metric Jobber Drill – 3.0mm
9LM0313.1mmGold Series Metric Jobber Drill – 3.1mm
9LM0323.2mmGold Series Metric Jobber Drill – 3.2mm
9LM0333.3mmGold Series Metric Jobber Drill – 3.3mm
9LM0343.4mmGold Series Metric Jobber Drill – 3.4mm
9LM0353.5mmGold Series Metric Jobber Drill – 3.5mm
9LM0363.6mmGold Series Metric Jobber Drill – 3.6mm
9LM0373.7mmGold Series Metric Jobber Drill – 3.7mm
9LM0383.8mmGold Series Metric Jobber Drill – 3.8mm
9LM0393.9mmGold Series Metric Jobber Drill – 3.9mm
9LM0404.0mmGold Series Metric Jobber Drill – 4.0mm
9LM0414.1mmGold Series Metric Jobber Drill – 4.1mm
9LM0424.2mmGold Series Metric Jobber Drill – 4.2mm
9LM0434.3mmGold Series Metric Jobber Drill – 4.3mm
9LM0444.4mmGold Series Metric Jobber Drill – 4.4mm
9LM0454.5mmGold Series Metric Jobber Drill – 4.5mm
9LM0464.6mmGold Series Metric Jobber Drill – 4.6mm
9LM0474.7mmGold Series Metric Jobber Drill – 4.7mm
9LM0484.8mmGold Series Metric Jobber Drill – 4.8mm
9LM0494.9mmGold Series Metric Jobber Drill – 4.9mm
9LM0505.0mmGold Series Metric Jobber Drill – 5.0mm
9LM0515.1mmGold Series Metric Jobber Drill – 5.1mm
9LM0525.2mmGold Series Metric Jobber Drill – 5.2mm
9LM0535.3mmGold Series Metric Jobber Drill – 5.3mm
9LM0545.4mmGold Series Metric Jobber Drill – 5.4mm
9LM0555.5mmGold Series Metric Jobber Drill – 5.5mm
9LM0565.6mmGold Series Metric Jobber Drill – 5.6mm
9LM0575.7mmGold Series Metric Jobber Drill – 5.7mm
9LM0585.8mmGold Series Metric Jobber Drill – 5.8mm
9LM0595.9mmGold Series Metric Jobber Drill – 5.9mm
9LM0606.0mmGold Series Metric Jobber Drill – 6.0mm
9LM0616.1mmGold Series Metric Jobber Drill – 6.1mm
9LM06156.15mmGold Series Metric Jobber Drill – 6.15mm
9LM0626.2mmGold Series Metric Jobber Drill – 6.2mm
9LM0636.3mmGold Series Metric Jobber Drill – 6.3mm
9LM0646.4mmGold Series Metric Jobber Drill – 6.4mm
9LM0656.5mmGold Series Metric Jobber Drill – 6.5mm
9LM0666.6mmGold Series Metric Jobber Drill – 6.6mm
9LM0676.7mmGold Series Metric Jobber Drill – 6.7mm
9LM0686.8mmGold Series Metric Jobber Drill – 6.8mm
9LM0696.9mmGold Series Metric Jobber Drill – 6.9mm
9LM0707.0mmGold Series Metric Jobber Drill – 7.0mm
9LM0717.1mmGold Series Metric Jobber Drill – 7.1mm
9LM0727.2mmGold Series Metric Jobber Drill – 7.2mm
9LM0737.3mmGold Series Metric Jobber Drill – 7.3mm
9LM0757.5mmGold Series Metric Jobber Drill – 7.5mm
9LM0767.6mmGold Series Metric Jobber Drill – 7.6mm
9LM0777.7mmGold Series Metric Jobber Drill – 7.7mm
9LM0787.8mmGold Series Metric Jobber Drill – 7.8mm
9LM0797.9mmGold Series Metric Jobber Drill – 7.9mm
9LM0808.0mmGold Series Metric Jobber Drill – 8.0mm
9LM0818.1mmGold Series Metric Jobber Drill – 8.1mm
9LM0828.2mmGold Series Metric Jobber Drill – 8.2mm
9LM0838.3mmGold Series Metric Jobber Drill – 8.3mm
9LM0848.4mmGold Series Metric Jobber Drill – 8.4mm
9LM0858.5mmGold Series Metric Jobber Drill – 8.5mm
9LM0868.6mmGold Series Metric Jobber Drill – 8.6mm
9LM0878.7mmGold Series Metric Jobber Drill – 8.7mm
9LM0888.8mmGold Series Metric Jobber Drill – 8.8mm
9LM0898.9mmGold Series Metric Jobber Drill – 8.9mm
9LM0909.0mmGold Series Metric Jobber Drill – 9.0mm
9LM0919.1mmGold Series Metric Jobber Drill – 9.1mm
9LM0929.2mmGold Series Metric Jobber Drill – 9.2mm
9LM0939.3mmGold Series Metric Jobber Drill – 9.3mm
9LM0949.4mmGold Series Metric Jobber Drill – 9.4mm
9LM0959.5mmGold Series Metric Jobber Drill – 9.5mm
9LM0969.6mmGold Series Metric Jobber Drill – 9.6mm
9LM0979.7mmGold Series Metric Jobber Drill – 9.7mm
9LM0989.8mmGold Series Metric Jobber Drill – 9.8mm
9LM0999.9mmGold Series Metric Jobber Drill – 9.9mm
9LM10010.0mmGold Series Metric Jobber Drill – 10.0mm
9LM10110.1mmGold Series Metric Jobber Drill – 10.1mm
9LM10210.2mmGold Series Metric Jobber Drill – 10.2mm
9LM10310.3mmGold Series Metric Jobber Drill – 10.3mm
9LM10410.4mmGold Series Metric Jobber Drill – 10.4mm
9LM10510.5mmGold Series Metric Jobber Drill – 10.5mm
9LM10610.6mmGold Series Metric Jobber Drill – 10.6mm
9LM10710.7mmGold Series Metric Jobber Drill – 10.7mm
9LM10810.8mmGold Series Metric Jobber Drill – 10.8mm
9LM10910.9mmGold Series Metric Jobber Drill – 10.9mm
9LM11011.0mmGold Series Metric Jobber Drill – 11.0mm
9LM11111.1mmGold Series Metric Jobber Drill – 11.1mm
9LM11211.2mmGold Series Metric Jobber Drill – 11.2mm
9LM11311.3mmGold Series Metric Jobber Drill – 11.3mm
9LM11411.4mmGold Series Metric Jobber Drill – 11.4mm
9LM11511.5mmGold Series Metric Jobber Drill – 11.5mm
9LM11611.6mmGold Series Metric Jobber Drill – 11.6mm
9LM11711.7mmGold Series Metric Jobber Drill – 11.7mm
9LM11811.8mmGold Series Metric Jobber Drill – 11.8mm
9LM11911.9mmGold Series Metric Jobber Drill – 11.9mm
9LM12012.0mmGold Series Metric Jobber Drill – 12.0mm
9LM12112.1mmGold Series Metric Jobber Drill – 12.1mm
9LM12212.2mmGold Series Metric Jobber Drill – 12.2mm
9LM12312.3mmGold Series Metric Jobber Drill – 12.3mm
9LM12412.4mmGold Series Metric Jobber Drill – 12.4mm
9LM12512.5mmGold Series Metric Jobber Drill – 12.5mm
9LM12612.6mmGold Series Metric Jobber Drill – 12.6mm
9LM12712.7mmGold Series Metric Jobber Drill – 12.7mm
9LM12812.8mmGold Series Metric Jobber Drill – 12.8mm
9LM12912.9mmGold Series Metric Jobber Drill – 12.9mm
9LM13013.0mmGold Series Metric Jobber Drill – 13.0mm
9LM13513.5mmGold Series Metric Jobber Drill – 13.5mm

Additional Information

Size

0.3mm, 0.4mm, 0.5mm, 0.58mm, 0.6mm, 0.7mm, 0.8mm, 0.9mm, 1mm, 1.1mm, 1.2mm, 1.3mm, 1.5mm, 1.6mm, 1.7mm, 1.8mm, 1.9mm, 2mm, 2.1mm, 2.2mm, 2.25mm, 2.3mm, 2.4mm, 2.5mm, 2.6mm, 2.7mm, 2.75mm, 2.8mm, 2.9mm, 3mm, 3.1mm, 3.2mm, 3.3mm, 3.4mm, 3.5mm, 3.6mm, 3.7mm, 3.8mm, 3.9mm, 4mm, 4.1mm, 4.2mm, 4.3mm, 4.4mm, 4.5mm, 4.6mm, 4.7mm, 4.8mm, 4.9mm, 5mm, 5.1mm, 5.2mm, 5.3mm, 5.4mm, 5.5mm, 5.6mm, 5.7mm, 5.8mm, 5.9mm, 6mm, 6.1mm, 6.15mm, 6.2mm, 6.3mm, 6.4mm, 6.5mm, 6.6mm, 6.7mm, 6.8mm, 6.9mm, 7mm, 7.1mm, 7.2mm, 7.3mm, 7.5mm, 7.6mm, 7.7mm, 7.8mm, 7.9mm, 8mm, 8.1mm, 8.2mm, 8.3mm, 8.4mm, 8.5mm, 8.6mm, 8.7mm, 8.8mm, 8.9mm, 9mm, 9.1mm, 9.2mm, 9.3mm, 9.4mm, 9.5mm, 9.6mm, 9.7mm, 9.8mm, 9.9mm, 10mm, 10.1mm, 10.2mm, 10.3mm, 10.4mm, 10.5mm, 10.6mm, 10.7mm, 10.8mm, 10.9mm, 11mm, 11.1mm, 11.2mm, 11.3mm, 11.4mm, 11.5mm, 11.6mm, 11.7mm, 11.8mm, 11.9mm, 12mm, 12.1mm, 12.2mm, 12.3mm, 12.4mm, 12.5mm, 12.6mm, 12.7mm, 12.8mm, 12.9mm, 13mm, 13.5mm
