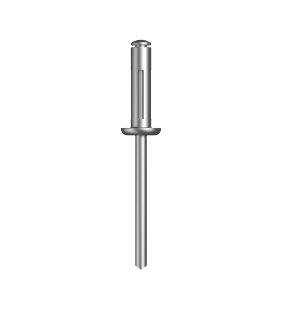

All Aluminium Triform Dome Head Rivet

From $88.00

Clear
SKU: R9P73FAA Category:

Description

APPLICATIONS
• Wood, plastics, plasterboard and insulation materials
• Situations requiring high shear load and pull-out capacities

FEATURES
• Triformed body ensures less material damage
• Triform rivets seperate into three parts upon installation, leaving a large surface area on the blind side of the rivet to prevent damage to the material






Rivet Dome Triform Plain


Part NumberDiameter D (mm)Grip Range Min (mm)Grip Range Max (mm)Body Length L (mm)Head Diameter D (mm)
R9P73FAA5044.03.26.4188.0
R9P73FAA5064.03.29.5218.0
R9P73FAA5084.06.412.7258.0
R9P73FAA6044.83.26.4189.6
R9P73FAA6064.83.29.5209.6
R9P73FAA6084.86.412.7249.6


Additional Information

Size

(5-4) 4.0 x 18mm, (5-6) 4.0 x 21mm, (5-8) 4.0 x 25mm, (6-4) 4.8 x 18.0mm, (6-6) 4.8 x 20mm, (6-8) 4.8 x 24mm
