Description

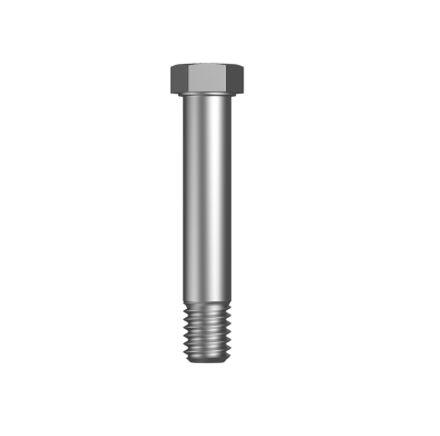

The Steel Frame Hex Bolt is specifically designed for use in engineered and fabricated steel frame construction systems.
Manufactured from mild steel and finished with a RoHS compliant zinc plating, these bolts provide dependable fastening performance for steel framing applications. The short thread length assists with the fit and alignment of steel sections during assembly.

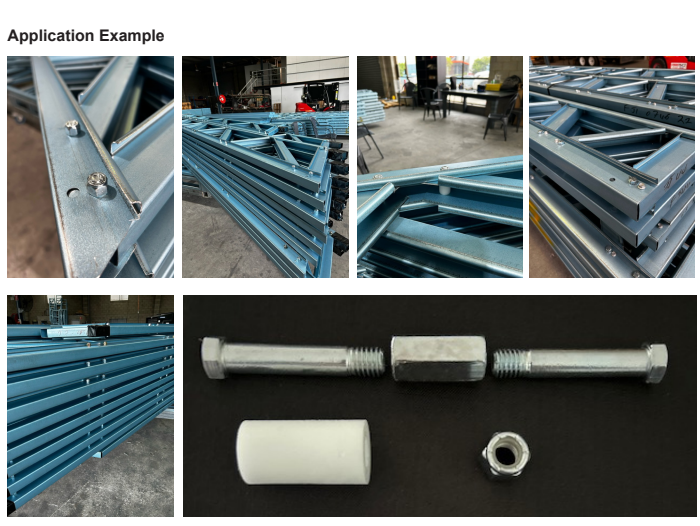

Commonly used in fabricated steel floor and truss systems, Steel Frame Hex Bolts are suitable for top and bottom chord connections as well as brace connections.
These bolts are supplied individually, allowing installers to select the appropriate nuts, couplers, NYLOC® nuts and spacers to suit individual project requirements.
Features
- Designed for engineered steel frame construction
- Mild steel construction
- RoHS compliant zinc plated finish
- Manufactured to ASTM A307
- Short thread length for improved fit and alignment
- Hex head design
- Suitable for fabricated steel systems
- Professional construction quality
- Nuts, couplers, NYLOC® nuts and spacers available separately
Suitable For
- Engineered steel frames
- Fabricated steel frames
- Steel floor systems
- Steel trusses
- Top chord connections
- Bottom chord connections
- Brace connections
- Commercial steel framing
Applications
- Commercial steel frames
- Engineered steel construction
- Fabricated steel assemblies
- Structural steel framing
- Steel floor systems
- Steel truss systems
Specifications
| Property | Specification |
|---|---|
| Product | Steel Frame Hex Bolt |
| Part Number | BHMSZ11C037200 |
| Material | Mild Steel |
| Finish | Zinc Plated (RoHS Compliant) |
| Standard | ASTM A307 |
| Thread | 3/8″-16 UNC |
| Diameter | 3/8″ |
| Length | 2″ (50mm) |
| Thread Length | 10mm |
| Head Height | 6mm |
| Across Flats | 1/2″ AF |
Available Sizes
| Part Number | Thread | Length |
|---|---|---|
| BHMSZ11C037200 | 3/8″-16 UNC | 2″ (50mm) |
Why Choose Steel Frame Hex Bolts?
Steel Frame Hex Bolts are purpose-built for fabricated and engineered steel framing systems. Their short thread length assists with accurate alignment of steel members, while the zinc plated finish and ASTM A307 mild steel construction provide dependable performance for commercial steel frame applications.
