Description

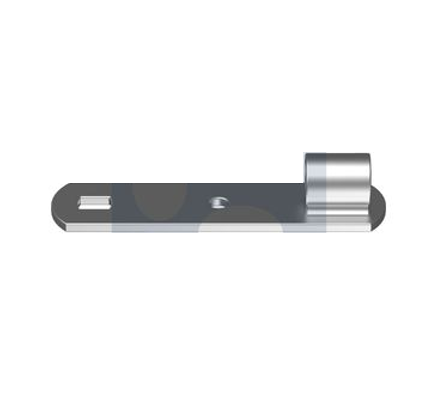

Zinc Plated Mount Plate Vertical Nut
The Mount Plate Vertical Nut is a practical fixing solution designed for suspension systems and mounting applications requiring a top-entry threaded rod connection.
Manufactured from mild steel and finished in zinc plating (RoHS compliant), this mounting plate delivers strength and corrosion resistance for general indoor use. The vertically positioned nut allows threaded rod to be installed directly from above, making it ideal for standard suspension setups.
With slotted fixing holes for adjustment, this mounting plate offers flexibility and ease of installation across construction, HVAC, and mechanical applications.
🔧 Applications
- Threaded rod suspension systems (top-entry fixing)
- HVAC and mechanical installations
- Pipe and cable tray mounting
- Ceiling fixing applications
- General construction and framing
⭐ Features & Benefits
- Vertical nut for direct threaded rod installation
- Zinc plated for corrosion resistance
- Strong mild steel construction
- Slotted plate for adjustable fixing
- Quick and easy installation
- Compatible with standard threaded rod systems
📏 AVAILABLE SIZES
M10 | M12
📊 TECHNICAL SPECIFICATIONS
| Property | Specification |
|---|---|
| Product Type | Mounting Plate Vertical Nut |
| Material | Mild Steel |
| Finish | Zinc Plated (RoHS Compliant) |
| Sizes | M10, M12 |
| Specification | HEC |
| Application | Suspension & Mounting |
📐 DIMENSIONS
M10
- M: M10
- A: 10mm
- B: 7mm
- H: 19mm
- W: 25mm
- D: 16mm
- T: 3.0mm
- L: 100mm
M12
- M: M12
- A: 10mm
- B: 7mm
- H: 20mm
- W: 25mm
- D: 19mm
- T: 3.0mm
- L: 100mm
📦 PRODUCT DATA
| Size | Part Number | QFind |
|---|---|---|
| M10 | PHSMSZHMVM10 | H1200B-M10 |
| M12 | PHSMSZHMVM12 | H1200B-M12 |
