Description

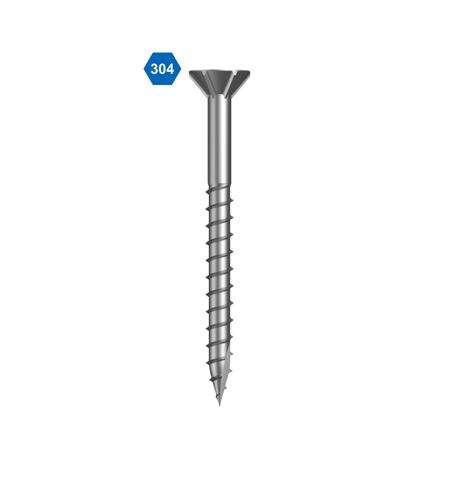

Type 17 Self-Embed Head screws in 304 stainless with a square-drive (size #2 or #3) for a clean, flush finish. The self-embedding head and under-head ribs remove particles during installation and help conceal the head.
Applications
- Ideal for timber decking in corrosive environments.
- Perfect for installations involving treated pine.
Features
- Self-embedding head design ensures a flush finish.
- Head ribs aid in particle removal during installation.
Available Sizes
| Part Number | Size | Length (L mm) | Thread Length (T mm) | Head Height (H mm) | Head Diameter (D mm) | Drive |
|---|---|---|---|---|---|---|
| T04WSSQ1012040 | #10-12 | 40 | 27 | 4.3 | 9.1 | #2 Square |
| T04WSSQ1012050 | #10-12 | 50 | 33 | 4.3 | 9.1 | #2 Square |
| T04WSSQ1012065 | #10-12 | 65 | 43 | 4.3 | 9.1 | #2 Square |
| T04WSSQ1012075 | #10-12 | 75 | 50 | 4.3 | 9.1 | #2 Square |
| T04WSSQ1211050 | #12-11 | 50 | 33 | 4.3 | 10.5 | #3 Square |
| T04WSSQ1211065 | #12-11 | 65 | 43 | 4.3 | 10.5 | #3 Square |
| T04WSSQ1211075 | #12-11 | 75 | 50 | 4.3 | 10.5 | #3 Square |
| T04WSSQ1211100 | #12-11 | 100 | 67 | 4.3 | 10.5 | #3 Square |
