Description

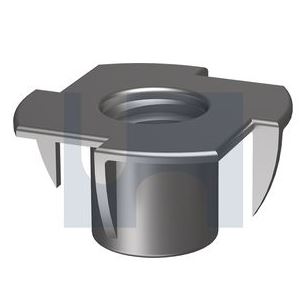

Tee Nut – 4 Prong Zinc Plated (HEC)
Hobson ConXtruct Tee Nuts are designed for use in timber, composite materials, and particle board. With a flush or recessed finish, they provide a female thread connection for bolts, castors, metal thread screws, or adjustable feet. Zinc plated and RoHS compliant, these 4-prong tee nuts deliver reliable performance for furniture and timber joinery applications.
Key Features
- 4 prongs secure the nut and prevent twisting or movement during installation
- Zinc plated (RoHS compliant) for corrosion resistance
- Flush or recessed finish leaves a clean surface
- Fast, simple installation into pre-drilled holes
- Available in sizes from M4 to M10
Applications
- Furniture assembly
- Connection of castors in lounges, offices, and domestic furniture
- Adjustable feet and timber joinery projects
Available Sizes
| Part Number | Size | Shaft Length (H) | Outside Ø (G) | Hole Size Required (F) | Prong Length (A) | Pack Qty |
|---|---|---|---|---|---|---|
| NTMSZCM04 | M4 | 8 mm | 15 mm | 5.1 mm | 6.0 mm | 200 |
| NTMSZCM05 | M5 | 8 mm | 17 mm | 6.1 mm | 5.8 mm | 200 |
| NTMSZCM06 | M6 | 9 mm | 19 mm | 7.4 mm | 7.0 mm | 200 |
| NTMSZCM0811 | M8 × 11 | 11 mm | 22 mm | 9.4 mm | 8.0 mm | 200 |
| NTMSZCM0817 | M8 × 17 | 17 mm | 22 mm | 9.4 mm | 8.0 mm | 200 |
| NTMSZCM10 | M10 | 12 mm | 25 mm | 11.4 mm | 8.5 mm | 200 |
