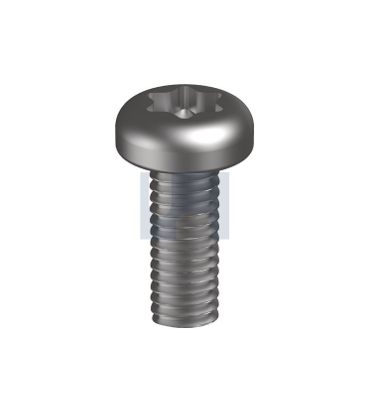

Taptite Pan Head Metric Thread Rolling Screw Torx Zinc

From $24.20

Trilobular Thread Rolling Screws are designed for forming their own threads in metal, providing deep thread engagement, excellent torque control, and resistance to vibrational loosening. Made from Mild Steel and Zinc Plated (RoHS Compliant) for corrosion protection. Torx drive head eliminates cam-out and provides consistent installation torque.

Description
Additional information

Description

Trilobular Thread Rolling Screw – Torx Drive (Zinc Plated Mild Steel)

The Trilobular Thread Rolling Screw range provides high-strength fastening in metals such as steel and aluminium. Its trilobular form reduces friction during thread forming while delivering prevailing torque and vibration resistance far exceeding standard self-tapping screws. The rolled thread design compresses the material grain structure for a stronger, more durable connection.

Applications

Metal framing and fabrication
Automotive and mechanical assemblies
Punched and cast metal parts
General sheet metal and light-gauge steel fixing

Material & Finish

Material: Mild Steel (MS)
Finish: Zinc Plated (Z/P) – RoHS Compliant

Features

Thread forming design eliminates the need for tapping, washers, or nuts.
Rolled trilobular threads compress the grain structure, strengthening the joint.
Provides superior resistance to vibration and loosening.
Precision Torx drive for reduced cam-out and consistent torque.
Cost-effective alternative to pre-threaded holes or locking fasteners.

Specifications

Part	Size Ø (mm) D	Length (mm) L	Torx Size	Recommended Hole Size (Steel)	Recommended Hole Size (Aluminium)
MTMSZPOM030006	M3	6	T10	2.75	2.75
MTMSZPOM030008	M3	8	T10	2.75	2.75
MTMSZPOM030010	M3	10	T10	2.75	2.75
MTMSZPOM030012	M3	12	T10	2.75	2.75
MTMSZPOM030014	M3	14	T10	2.75	2.75
MTMSZPOM040008	M4	8	T20	3.65–3.7	3.7
MTMSZPOM040010	M4	10	T20	3.65–3.7	3.7
MTMSZPOM040012	M4	12	T20	3.65–3.7	3.7
MTMSZPOM040016	M4	16	T20	3.65–3.7	3.7
MTMSZPOM040020	M4	20	T20	3.65–3.7	3.7
MTMSZPOM050010	M5	10	T25	4.6–4.65	4.65
MTMSZPOM050012	M5	12	T25	4.6–4.65	4.65
MTMSZPOM050016	M5	16	T25	4.6–4.65	4.65
MTMSZPOM050020	M5	20	T25	4.6–4.65	4.65
MTMSZPOM060010	M6	10	T30	5.5–5.55	5.65
MTMSZPOM060012	M6	12	T30	5.5–5.55	5.65
MTMSZPOM060016	M6	16	T30	5.5–5.55	5.65
MTMSZPOM060020	M6	20	T30	5.5–5.55	5.65
MTMSZPOM060030	M6	30	T30	5.5–5.55	5.65

Recommended Hole Sizes

M3: 2.75mm in Steel or Aluminium
M4: 3.65–3.7mm in Steel / 3.7mm in Aluminium
M5: 4.6–4.65mm in Steel / 4.65mm in Aluminium
M6: 5.5–5.55mm in Steel / 5.65mm in Aluminium

All values are recommendations based on optimal thread-forming performance and may vary depending on material hardness and hole preparation.

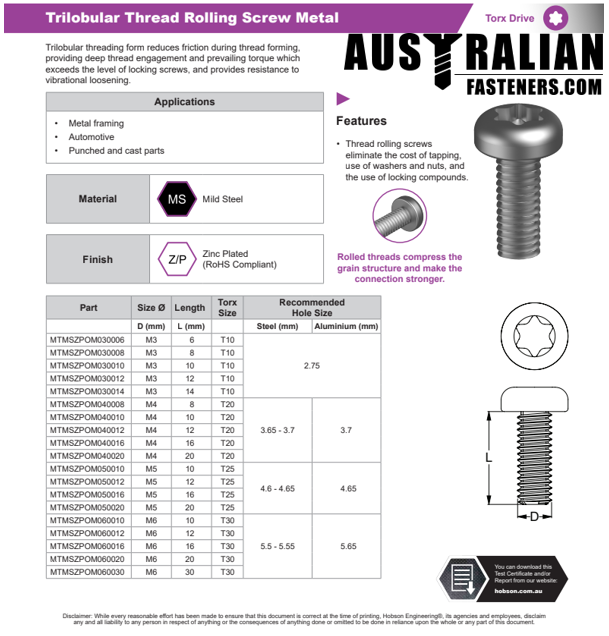

[Product Information]

Additional Information

Size:	M3 X 6, M3 X 8, M3 X 10, M3 X 12, M3 X 14, M4 X 8, M4 X 10, M4 X 12, M4 X 16, M4 X 20, M5 X 10, M5 X 12, M5 X 16, M5 X 20, M6 X 10, M6 X 12, M6 X 16, M6 X 20, M6 X 30
