Description

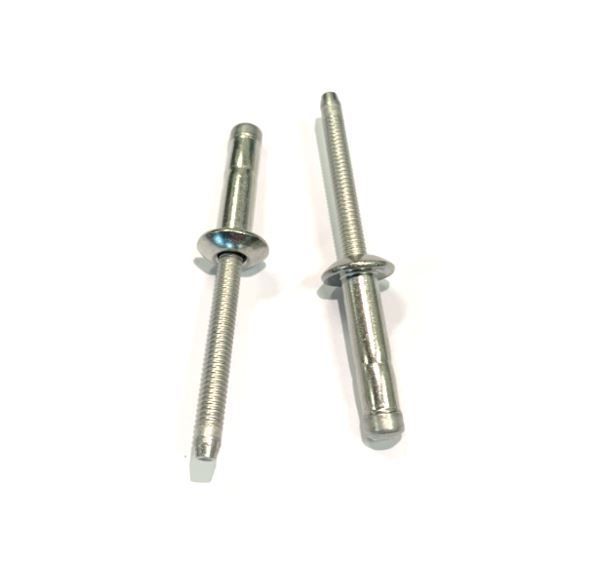

The Ornit© Orlock rivet is one of our highest strength structural rivets. The blind-side upset is bulbed which helps spread the clamp force so that the joint material is not deformed. The bulbed tail of the Orlock also leaves a neat finish with minimal protrusion on the blind side. The dual locking grooves on the mandrel provide excellent resistance to vibration as well as impressive shear strength and weather resistance.
| Part Number | Part Number | Diameter (mm) | Grip Range (mm) | Hole Size (mm) | Box Qty |
|---|---|---|---|---|---|
| BLDRC-08105XG | ARDS-08105 | 6.5 | 2.0 – 4.5 | 6.80 | 2,000 |
| BLDRC-08125XG | ARDS-08125 | 6.5 | 3.0 – 6.5 | 6.80 | 2,000 |
| BLDRC-08145XG | ARDS-08145 | 6.5 | 5.0 – 8.5 | 6.80 | 2,000 |
| BLDRC-08165XG | ARDS-08165 | 6.5 | 7.0 – 10.5 | 6.80 | 2,000 |
| BLDRC-08185XG | ARDS-08185 | 6.5 | 9.0 – 12.5 | 6.80 | 2,000 |
| BLDRC-08205XG | ARDS-08205 | 6.5 | 11.0 – 14.5 | 6.80 | 2,000 |
| BLDRC-08225XG | ARDS-08225 | 6.5 | 13.0 – 16.5 | 6.80 | 1,000 |
| BLDRC-08245 | ARDS-08245 | 6.4 | 16.8 – 18.8 | 6.70 | 1,000 |
