Description

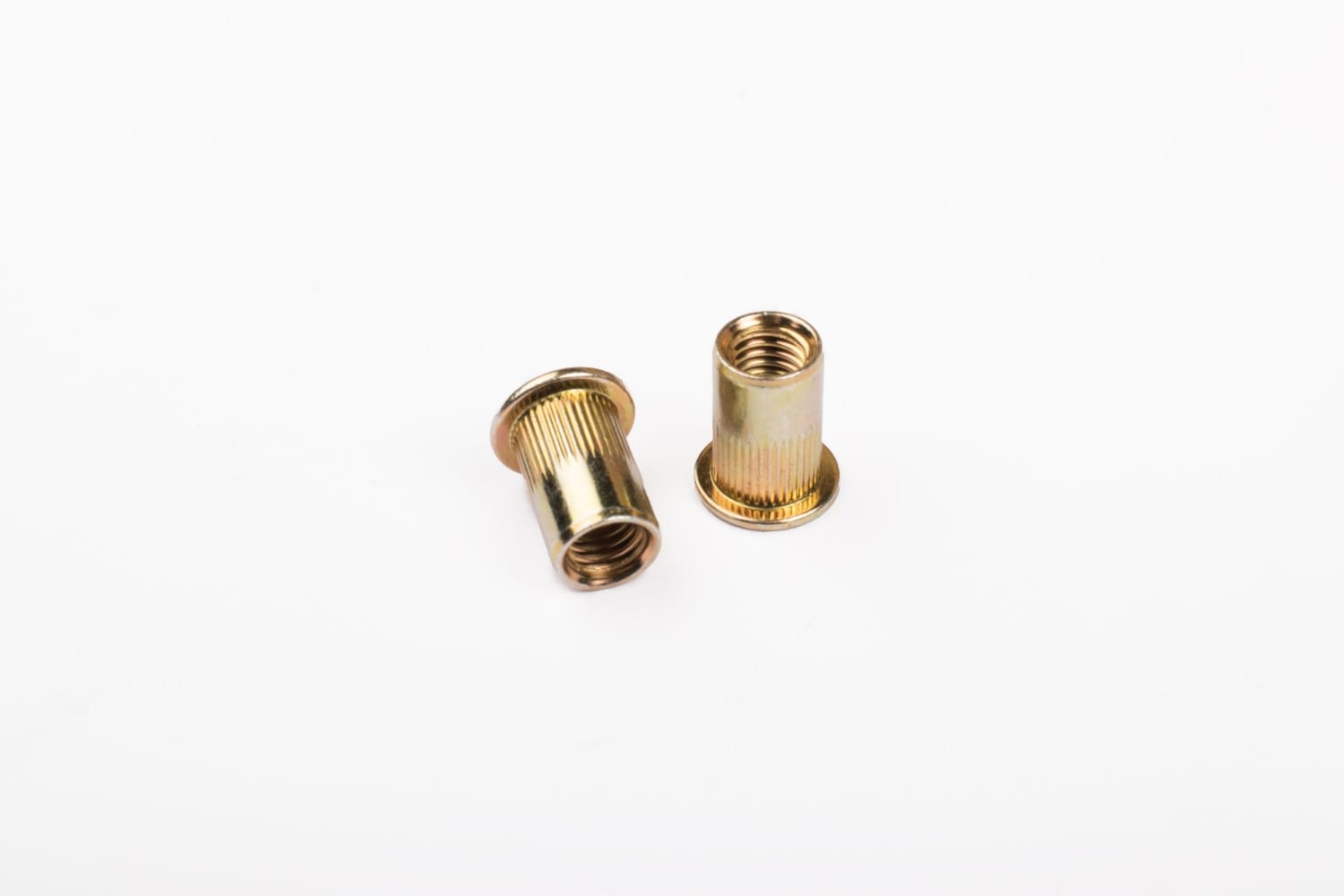

Our Zinc Plated Rivet Nuts – Flat Round Knurl Open are a versatile blind fastening solution designed for applications where the base material is too thin to be tapped or inaccessible from the rear. Featuring a knurled body to prevent rotation and a flat head for a clean finish, these rivet nuts are RoHS compliant and engineered for reliability in structural and mechanical applications.
Features
Knurled body prevents rotation during installation.
Chamfered end for easy insertion into pre-drilled holes.
Zinc Plated for excellent corrosion resistance.
Suitable for one-piece blind fastening.
Used in metal fabrication, automotive and general construction.
Applications
Automotive panel fastening
Metal fabrication
Thin sheet installations
Furniture and machinery assembly
| Part Number | Size (Ø mm) | Length L (mm) | Grip Range G (mm) | Hole Dia D (mm) | Body Dia B (mm) | Head Dia A (mm) | Protrusion P (mm) |
|---|---|---|---|---|---|---|---|
| NRMSZFKOM04105 | M4 | 10.5 | 0.5–2.0 | 6 | 5.9 | 9.0 | 9.0 |
| NRMSZFKOM04120 | M4 | 12.0 | 2.0–3.5 | 6 | 5.9 | 9.0 | 9.0 |
| NRMSZFKOM05130 | M5 | 13.0 | 0.5–2.5 | 7 | 6.9 | 10.0 | 10.0 |
| NRMSZFKOM05165 | M5 | 16.5 | 2.5–5.0 | 7 | 6.9 | 10.0 | 10.0 |
| NRMSZFKOM06155 | M6 | 16.5 | 0.5–3.0 | 9 | 8.9 | 13.0 | 13.0 |
| NRMSZFKOM06195 | M6 | 19.5 | 3.0–5.5 | 9 | 8.9 | 13.0 | 13.0 |
| NRMSZFKOM08180 | M8 | 18.0 | 0.5–3.0 | 11 | 10.9 | 14.5 | 14.5 |
| NRMSZFKOM08210 | M8 | 21.0 | 3.5–6.0 | 11 | 10.9 | 14.5 | 14.5 |
| NRMSZFKOM10215 | M10 | 21.5 | 1.0–4.0 | 13 | 12.9 | 17.0 | 17.0 |
| NRMSZFKOM10240 | M10 | 24.0 | 4.0–6.5 | 13 | 12.9 | 17.0 | 17.0 |
| NRMSZFKOM12250 | M12 | 25.0 | 1.0–4.0 | 16 | 15.9 | 22.0 | 22.0 |
| NRMSZFKOM12280 | M12 | 28.0 | 3.5–6.0 | 16 | 15.9 | 22.0 | 22.0 |
