Description

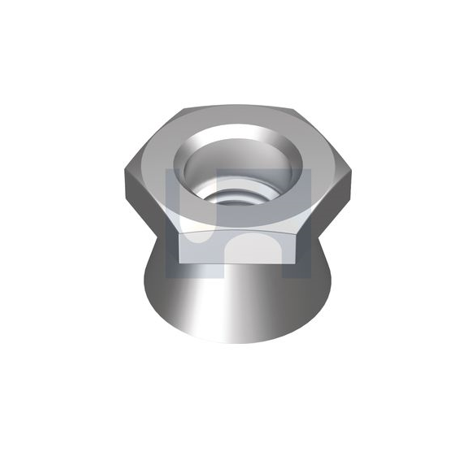

Hot Dip Galvanised Shear Nut – Tamper-Proof Security Fastener
The Hot Dip Galvanised Shear Nut is a permanent security fastener designed for applications requiring maximum tamper resistance. Once installed, the hex section shears off at a pre-set torque, leaving a smooth, conical head that resists removal. The hot dip galvanised coating provides excellent corrosion protection for outdoor and industrial environments.
Applications
- Security fencing, gates, and bollards
- Street lighting and public infrastructure
- Utility enclosures and access covers
- Outdoor fixtures and high-security areas
Features
- Permanent, tamper-proof design – hex shears off at rated torque
- Hot Dip Galvanised for corrosion resistance in harsh environments
- High-strength steel body suitable for structural applications
- Torque-shear calibrated for consistent installation
Material & Finish
- Material: High-tensile carbon steel
- Finish: Hot Dip Galvanised
- Standard: AS/NZS Security Fastening Specification
Available Sizes
M8 | M10 | M12 | M16 | M20
Specifications
| Part | QFind | Torque Range (Nm) | Size | Finish |
|---|---|---|---|---|
| NS05GCM08 | – | 14–20 | M8 | Hot Dip Galvanised |
| NS05GCM10 | – | 31–38 | M10 | Hot Dip Galvanised |
| NS05GCM12 | – | 52–60 | M12 | Hot Dip Galvanised |
| NS05GCM16 | – | 74–82 | M16 | Hot Dip Galvanised |
| NS05GCM20 | – | 100–113 | M20 | Hot Dip Galvanised |
