Description

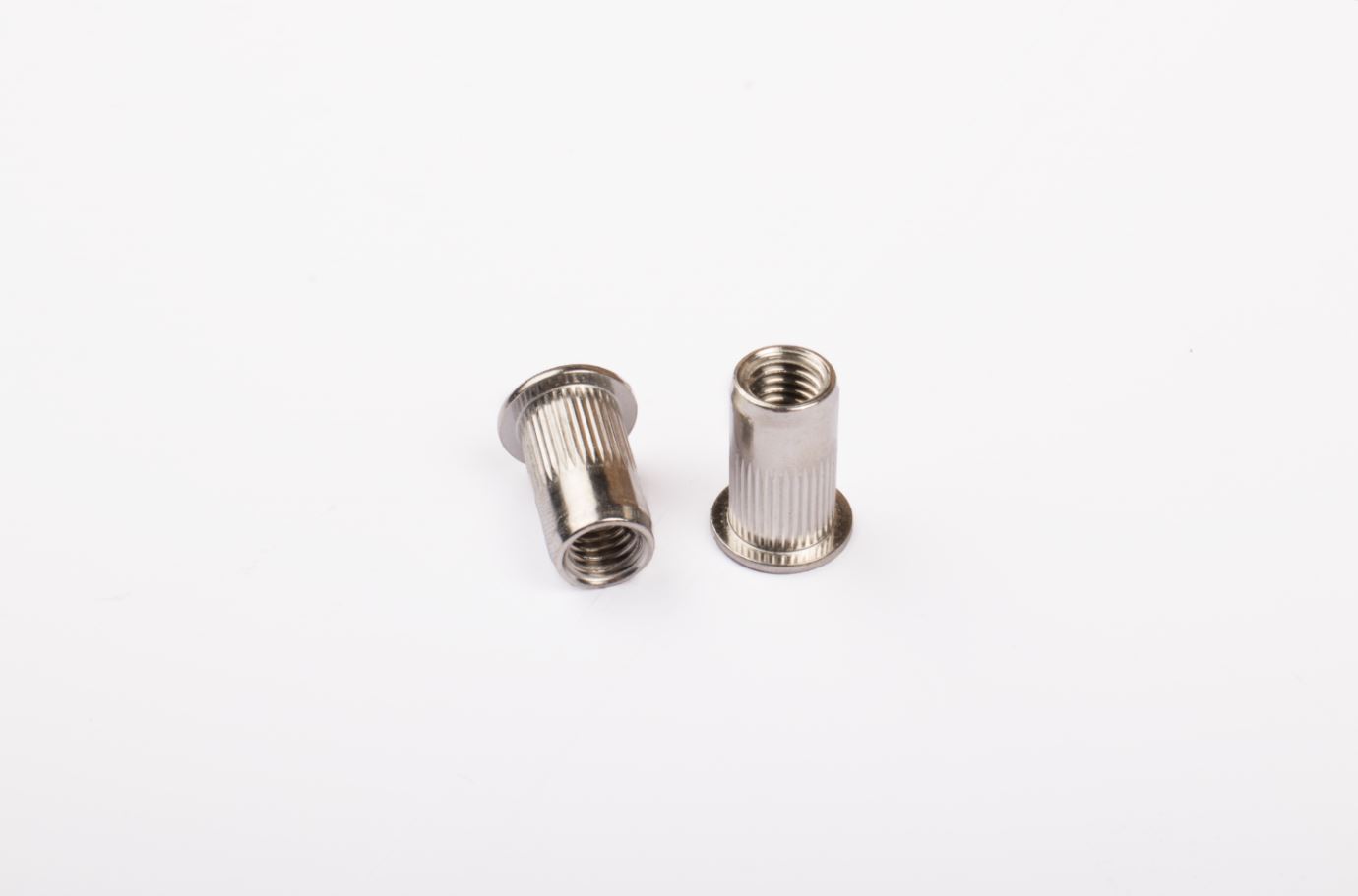

Our 316 Stainless Rivet Nuts – Flat Round Knurl Open are designed for maximum strength, durability, and corrosion resistance in demanding environments.
✅ Corrosion Protection: Made from marine-grade 316 stainless steel, ideal for outdoor, marine, and industrial use.
✅ Secure Fixing: Knurled body prevents rotation during installation and tightening.
✅ Blind Fastening: Perfect for applications where only one side of the workpiece is accessible.
✅ Versatile Use: Suitable for sheet metal, aluminium, plastic, and fabrication work.
Applications:
Metal fabrication and sheet work
Marine and outdoor environments
Automotive and industrial repairs
Use where base material is too thin to be tapped
| Part Number | Size (Ø mm) | Length L (mm) | Grip Range G (mm) | Hole Diameter D (mm) | Body Diameter B (mm) | Head Diameter A (mm) | Protrusion P (mm) |
|---|---|---|---|---|---|---|---|
| NR16PFKOM04110 | M4 | 11.0 | 0.5–2.0 | 6 | 5.9 | 9 | 5.4 |
| NR16PFKOM04140 | M4 | 14.0 | 2.0–4.0 | 6 | 5.9 | 9 | 5.4 |
| NR16PFKOM05130 | M5 | 13.0 | 0.5–2.5 | 7 | 6.9 | 10 | 8.0 |
| NR16PFKOM05160 | M5 | 16.0 | 2.5–4.5 | 7 | 6.9 | 10 | 8.0 |
| NR16PFKOM06160 | M6 | 16.0 | 0.5–3.0 | 9 | 8.9 | 12 | 10.0 |
| NR16PFKOM06185 | M6 | 18.5 | 3.0–5.0 | 9 | 8.9 | 12 | 10.0 |
| NR16PFKOM08175 | M8 | 17.5 | 0.5–3.5 | 11 | 10.9 | 15 | 11.0 |
| NR16PFKOM08200 | M8 | 20.0 | 3.5–6.0 | 11 | 10.9 | 15 | 11.0 |
| NR16PFKOM10190 | M10 | 19.0 | 1.0–3.5 | 13 | 12.9 | 17 | 15.0 |
| NR16PFKOM10240 | M10 | 24.0 | 3.5–5.5 | 13 | 12.9 | 17 | 15.0 |
