Description

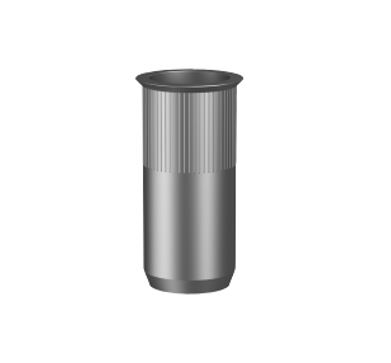

Aluminium Rivet Nut – Reduced Head Round Knurl Open are designed for applications where a low-profile head is required. Made from lightweight aluminium, they provide secure fastening in thin sheet materials, automotive panels, and metal fabrication projects.
Features
- Reduced head, also known as countersunk or thin sheet type
- Knurled body to grip and prevent rotation
- Low-profile design allows near-flush fit to sheet metal
- Lightweight aluminium construction
- Quick and easy installation
Applications
- Automotive body panels and chassis components
- Construction sheet steel fastening
- Load-bearing applications in thin materials
- Where traditional nuts cannot be used
Available Sizes
| Part Number | Size | Length L (mm) | Grip Range G (mm) | Hole Diameter D (mm) | Body Diameter B (mm) | Head Diameter A (mm) | Protrusion P (mm) |
|---|---|---|---|---|---|---|---|
| NRALPRKOM03085 | M3 | 8.5 | 0.5 – 1.5 | 5 | 4.9 | 6 | 6.0 |
| NRALPRKOM04100 | M4 | 10.0 | 0.5 – 1.5 | 6 | 5.9 | 7 | 6.0 |
| NRALPRKOM05120 | M5 | 12.0 | 0.5 – 2.5 | 7 | 6.9 | 8 | 7.6 |
| NRALPRKOM06145 | M6 | 14.5 | 0.5 – 3.0 | 9 | 8.9 | 10 | 9.0 |
| NRALPRKOM08165 | M8 | 16.5 | 1.0 – 3.5 | 11 | 10.9 | 12 | 12.0 |
