Description

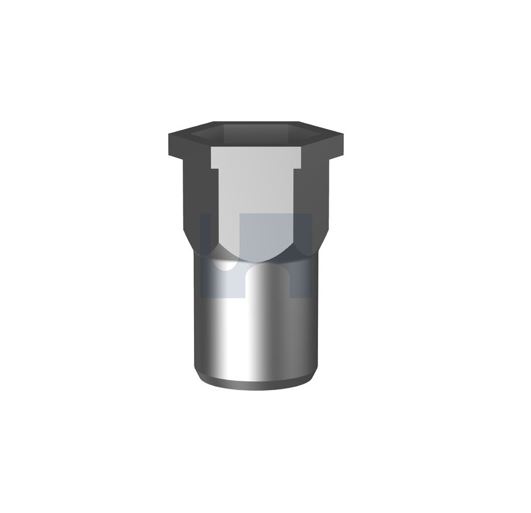

Reduced head half hex open rivet nuts are designed for high-strength blind fastening applications where access is limited to one side of the material.
The half hex body provides excellent resistance to rotation compared to round body rivet nuts, making them ideal for structural and vibration-prone assemblies.
The reduced head design allows for a lower profile finish, while the open end enables the use of longer fasteners where required.
Manufactured from carbon steel and zinc plated for corrosion resistance, these rivet nuts are suitable for steel, aluminium, and thin-walled materials.
- Half hex body for superior anti-spin performance
- Reduced head for low-profile installations
- Open end design suits longer fasteners
- Zinc plated steel for corrosion resistance
- Metric thread sizes M4 to M10
- RoHS compliant
Applications
- Sheet metal fabrication
- Automotive and transport assemblies
- Electrical enclosures and cabinets
- Steel and aluminium structures
- Repair and retrofit installations
Specifications
- Product Type: Reduced Head Half Hex Open Rivet Nut
- Material: Carbon Steel
- Finish: Zinc Plated
- Thread Type: Metric
- Sizes Available: M4 | M5 | M6 | M8 | M10
- Compliance: RoHS
| Part | Description | Product | Finish | Size | Length | Grip Range |
|---|---|---|---|---|---|---|
| NRMSZRHOM04120 | RIVN Z/P RHD HALFHX OP: M4X 12 | RIVET NUT REDUCE HALF HEX OPEN | ZINC PLATED (ROHS COMPLIANT) | M4 | 12 | 0.5-2.0 |
| NRMSZRHOM05130 | RIVN Z/P RHD HALFHX OP: M5X 13 | RIVET NUT REDUCE HALF HEX OPEN | ZINC PLATED (ROHS COMPLIANT) | M5 | 13 | 0.5-2.5 |
| NRMSZRHOM06160 | RIVN Z/P RHD HALFHX OP: M6X 16 | RIVET NUT REDUCE HALF HEX OPEN | ZINC PLATED (ROHS COMPLIANT) | M6 | 16 | 1.0-3.5 |
| NRMSZRHOM08175 | RIVN Z/P RHD HALFHX OP: M8X17.5 | RIVET NUT REDUCE HALF HEX OPEN | ZINC PLATED (ROHS COMPLIANT) | M8 | 17.5 | 1.0-3.5 |
| NRMSZRHOM10210 | RIVN Z/P RHD HALFHX OP: M10X21 | RIVET NUT REDUCE HALF HEX OPEN | ZINC PLATED (ROHS COMPLIANT) | M10 | 21 | 1.0-4.0 |
