Description

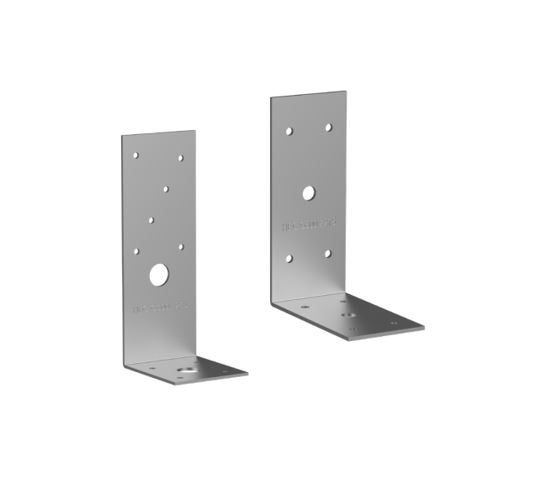

Bracket Angle Pergola
The Bracket Angle Pergola range provides reliable connection support for pergola and timber beam joints. Manufactured from G300 structural steel with a Z275 galvanised finish, these brackets ensure corrosion resistance and long-lasting durability in outdoor environments. Designed with pre-formed holes for both nails and bolts, they simplify installation and deliver strong structural performance.
Applications
- Timber pergola beam connections
- Structural framing and outdoor construction
- Bracing and load-bearing joints
Features
- Made from G300 structural steel
- Galvanised Z275 coating for corrosion protection
- Holes suit both nails and bolts
- Durable 2.0mm thickness for structural reliability
- Available in M6 and M12 hole configurations
Material & Finish
- Material: G300 Structural Steel
- Finish: Galvanised Z275
- Thickness: 2.0mm
Available Sizes
M6 | M12
| Part | Size | A (mm) | B (mm) | C (mm) | D1 (mm) | D2 (mm) | t (mm) |
|---|---|---|---|---|---|---|---|
| GABGP06065090 | M6 | 36 | 89 | 65 | 3.5 | 6.5 | 2.0 |
| GABGP12055130 | M12 | 47 | 129 | 55 | 3.5 | 13.0 | 2.0 |
Compliance
Manufactured from G300 steel and coated with Z275 galvanising, these brackets meet Australian structural requirements for outdoor use and pergola installations.
