Description

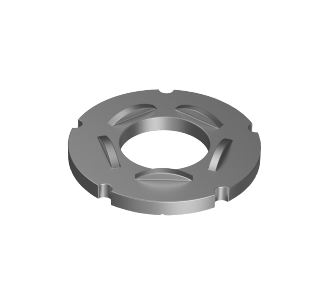

Metric Load Indicator Washers Class 8.8 Galvanised
Description
GALV LOAD INDICAT WASHER: M12
Finish
MECHANICAL GALVANISED
Product
LOAD INDICATOR WASHER
Specification
ASTM F959M / CLASS 8.8
Applications
• Tensioned (TF/TB) connections in structural steelwork
Features
• Calibrated load-indicating washer to the requirements of ASTM F959M
• Use with feeler gauges to verify minimum tension has been achieved
• 3-character trace code stamped on the washer for product verification
• Accepted installation method as per AS 4100 and AS 5131 Section 8.5.8
• LIWs are individual bolt load cells that measure pretension developed during tightening, regardless of torque
| Part | Description | Product | Finish | Size |
|---|---|---|---|---|
| WISTGM12 | GALV LOAD INDICAT WASHER: M12 | LOAD INDICATOR WASHER | MECHANICAL GALVANISED | M12 |
| WISTGM16 | GALV LOAD INDICAT WASHER: M16 | LOAD INDICATOR WASHER | MECHANICAL GALVANISED | M16 |
| WISTGM20 | GALV LOAD INDICAT WASHER: M20 | LOAD INDICATOR WASHER | MECHANICAL GALVANISED | M20 |
| WISTGM24 | GALV LOAD INDICAT WASHER: M24 | LOAD INDICATOR WASHER | MECHANICAL GALVANISED | M24 |
| WISTGM30 | GALV LOAD INDICAT WASHER: M30 | LOAD INDICATOR WASHER | MECHANICAL GALVANISED | M30 |
| WISTGM36 | GALV LOAD INDICAT WASHER: M36 | LOAD INDICATOR WASHER | MECHANICAL GALVANISED | M36 |
