Description

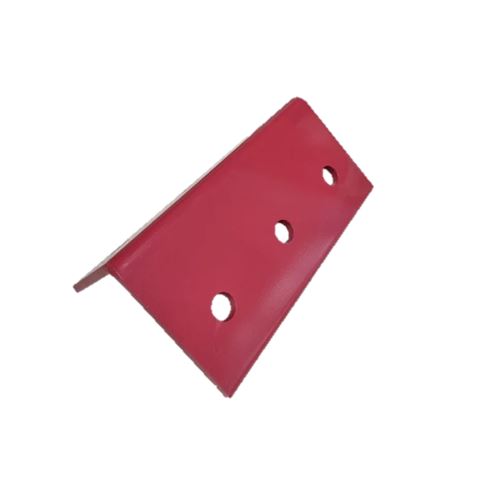

Maxi Metals Heavy Duty Angle Brackets – ABHD Range
The Maxi Metals ABHD Range is designed to make a builder’s life easier, offering high-strength performance for a wide variety of structural and framing applications. Each bracket is manufactured from durable 8–10mm thick AS3678 Grade 300 steel, ensuring superior strength and stability. Ideal for stair brackets, structural joints, or internal/external corner supports.
Applications
- Staircase and handrail support
- Structural corner bracing and framing
- Timber and steel construction
- Heavy-duty fixing and framing connections
Features
- Manufactured from AS3678 Grade 300 Structural Steel
- Complies with AS/NZS 3678 Australian Standards
- Yield strength: 320MPa | Tensile strength: 430MPa
- 8–10mm thickness (depending on size)
- 18mm fixing holes for secure fastening
- Suitable for internal and external corner joints
Material & Specification
- Material: AS3678 Grade 300 Structural Carbon Steel
- Finish: Plain Steel
- Yield Strength: 320MPa
- Tensile Strength: 430MPa
- Elongation: 21%
Available Sizes
100 × 100 × 100 × 8mm | 100 × 100 × 150 × 8mm | 100 × 100 × 200 × 8mm | 100 × 150 × 200 × 8mm | 125 × 125 × 250 × 8mm
Specifications
| Part Number | Dimensions (mm) | Thickness (mm) | Holes (each side) |
|---|---|---|---|
| ABHD100 | 100 × 100 × 100 x 8mm | 8 | 2 |
| ABHD150 | 100 × 100 × 150 x 8mm | 8 | 3 |
| ABHD200 | 100 × 100 × 200 x 8mm | 8 | 3 |
| ABHD200150 | 100 × 150 × 200 x 8mm | 8 | 3 |
| ABHD250125 | 125 × 125 × 250 x 8mm | 8 | 3 |
Compliance
All Maxi Metals ABHD brackets comply with AS/NZS 3678 standards for structural steel, ensuring quality and reliability in construction, industrial, and framing applications.
