Description

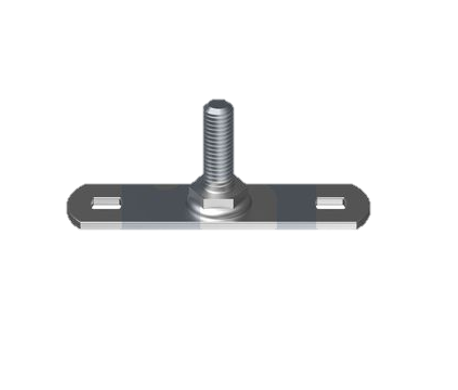

Zinc Plated Mount Plate Centre Bolt – M10
The Mount Plate Centre Bolt (M10) is a versatile fixing solution designed for use in suspension systems, mounting applications, and structural installations.
Manufactured from mild steel and finished in zinc plating (RoHS compliant), this mounting plate provides reliable strength with corrosion resistance for general indoor use.
The integrated centre bolt allows for easy connection to threaded rod systems, making installation fast and efficient across a wide range of construction and mechanical applications.
🔧 Applications
- Threaded rod suspension systems
- Pipe and cable tray mounting
- Mechanical and HVAC installations
- Ceiling and wall fixing applications
- General construction and support framing
⭐ Features & Benefits
- Integrated centre bolt for quick installation
- Zinc plated finish for corrosion resistance
- Strong mild steel construction
- Slotted plate for adjustable fixing positions
- Suitable for a wide range of mounting applications
- Compatible with standard M10 threaded systems
📏 SIZE
M10
📊 TECHNICAL SPECIFICATIONS
| Property | Specification |
|---|---|
| Product Type | Mounting Plate Centre Bolt |
| Material | Mild Steel |
| Finish | Zinc Plated (RoHS Compliant) |
| Size | M10 |
| Specification | HEC |
| Application | Suspension & Mounting |
📐 DIMENSIONS
- M: M10
- A: 10mm
- B: 7mm
- AF: 16mm
- W: 25mm
- TL: 30mm
- H: 6.5mm
- T: 3.0mm
- L: 100mm
📦 PRODUCT DATA
| Part Number | QFind |
|---|---|
| PHSMSZHMBM10 | H1200SP |
