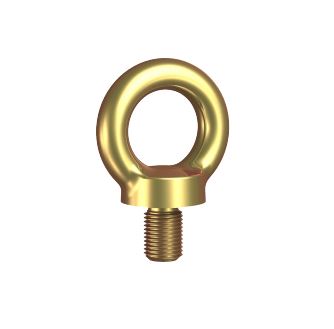

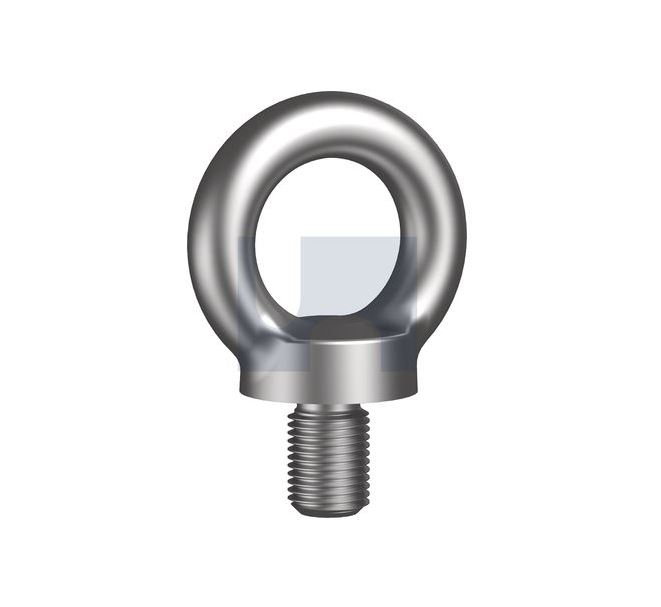

DIN 580 Lifting Eye Bolt – Zinc Yellow Passivated (ZYP)
Approved for lifting and suitable for both axial and angular loading. Manufactured from Grade C15E steel with a Zinc Yellow Passivated finish and stamped with CE and WLL markings for traceability.
Applications
- Connection point for anchoring, rigging, pulling, lifting or hoisting
- Use with ropes, cables, shackles and hooks
- Threaded into steel equipment, machinery and structures
- Can be bolted through steel or timber and secured with a nut
Sizes & Key Dimensions
M6
| Part | QFind | L (mm) | H (mm) | Inside Ø ID (mm) | Outside Ø OD (mm) | Collar Ø D (mm) | Collar H E (mm) |
|---|---|---|---|---|---|---|---|
| ULEBC5YD5M06 | EBCYM6 | 13.0 | 36 | 20 | 36 | 20 | 6 |
M8
| Part | QFind | L | H | ID | OD | D | E |
|---|---|---|---|---|---|---|---|
| ULEBC5YD5M08 | EBCYM8 | 13.0 | 36 | 20 | 36 | 20 | 6 |
M10
| Part | QFind | L | H | ID | OD | D | E |
|---|---|---|---|---|---|---|---|
| ULEBC5YD5M10 | EBCYM10 | 17.0 | 45 | 25 | 45 | 25 | 8 |
M12
| Part | QFind | L | H | ID | OD | D | E |
|---|---|---|---|---|---|---|---|
| ULEBC5YD5M12 | EBCYM12 | 20.5 | 53 | 30 | 54 | 30 | 10 |
M16
| Part | QFind | L | H | ID | OD | D | E |
|---|---|---|---|---|---|---|---|
| ULEBC5YD5M16 | EBCYM16 | 27.0 | 62 | 35 | 63 | 35 | 12 |
M20
| Part | QFind | L | H | ID | OD | D | E |
|---|---|---|---|---|---|---|---|
| ULEBC5YD5M20 | EBCYM20 | 30.0 | 71 | 40 | 72 | 40 | 14 |
M24
| Part | QFind | L | H | ID | OD | D | E |
|---|---|---|---|---|---|---|---|
| ULEBC5YD5M24 | EBCYM24 | 36.0 | 90 | 50 | 90 | 50 | 18 |
Markings: CE (European Conformity) and WLL (Working Load Limit). Dimensions per datasheet.
